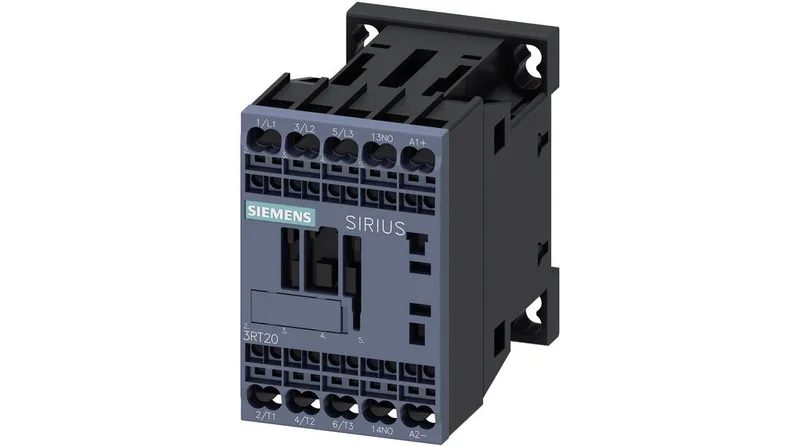

Siemens 3RT2015-2JB41

MPN3RT2015-2JB41

Active

power contactor, AC-3e/AC-3, 7 A, 3 kW / 400 V, 3-pole, 24 V DC, 0.7-1.25* Us, with integrated diode, auxiliary contacts: 1 NO, spring-loaded terminal, size: S00, suitable for PLC outputs, not expandable with auxiliary switch

$46.50Ref. price · indicative, final on quote

Add to RFQ

Siemens 3RT2015-2JB41 datasheet (PDF)

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026

Specifications

3RT2015-2JB41 — Identification
Parameter	Value
Contactor frame size	S00

3RT2015-2JB41 — Ratings & Performance
Parameter	Value
Rated operational current, AC-12, max.	10 A
Rated operational current, AC-4 @ 400 V	6.5 A
Rated value @ 400 V	3 A
Rated value @ 500 V	2 A
Rated value @ 690 V	1 A
Rated value @ 230 V	0.75 hp
Rated value @ 24 V	10 A
Rated value @ 60 V	2 A
Rated value @ 110 V	1 A
Rated value @ 220 V	0.3 A

3RT2015-2JB41 — Control & Coil
Parameter	Value
Control supply voltage type	DC

3RT2015-2JB41 — Contacts & Poles
Parameter	Value
Main poles	3
Main NO contacts	3
Auxiliary contact reliability	1 faulty switching per 100 million (17 V, 1 mA)

3RT2015-2JB41 — Protection & Coordination
Parameter	Value
Short-circuit coordination type 1, fuse	gG: 35A (690V,100kA), aM: 20A (690V,100kA), BS88: 35A (415V,80kA)
Short-circuit coordination type 2, fuse	gG: 20A (690V,100kA), aM: 16A (690V, 100kA), BS88: 20A (415V, 80kA)
Aux. switch short-circuit protection, fuse	gG: 10 A (500 V, 1 kA)

3RT2015-2JB41 — Connection & Mounting
Parameter	Value
Main circuit connection	spring-loaded terminals
Aux. / control circuit connection	spring-loaded terminals
Conductor cross-section, solid	0.5 ... 4 mm²
Conductor cross-section, solid or stranded	2x (0,5 ... 4 mm²)
Conductor cross-section, finely stranded w/ ferrule	2x (0.5 ... 2.5 mm²)
Mounting method	screw and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
Side-by-side mounting	Yes
