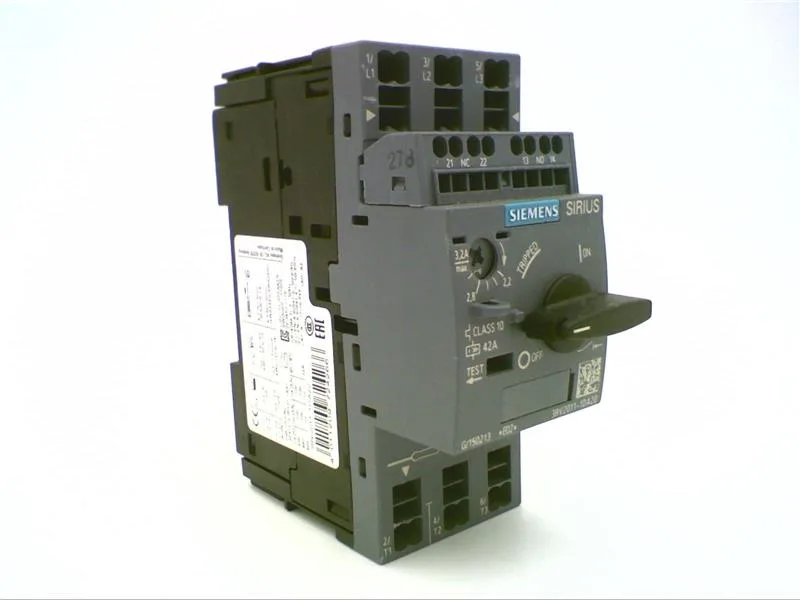

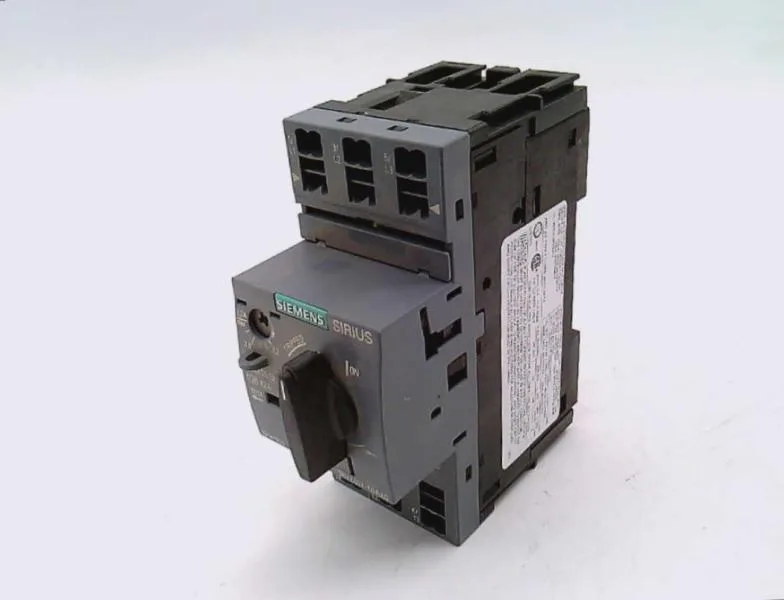

Siemens SIRIUS motor protection circuit breaker, 3RV2011-1DA20, trip class 10, rated voltage 20-690 V, SCCR 100 kA at 400 V, spring-loaded terminals.
| Parameter | Value |
|---|---|
| Series | SIRIUS |
| Product designation | Circuit breaker |
| Frame size | S00 |
| Parameter | Value |
|---|---|
| Rated operational current (Ie) | 3.2 A |
| Rated voltage | 20 ... 690 V |
| Rated voltage, AC-3 (max.) | 690 V |
| Rated frequency | 50 ... 60 Hz |
| Rated insulation voltage (Ui), pollution degree 3 | 690 V |
| Rated impulse withstand voltage (Uimp) | 6 kV |
| Number of poles | 3 |
| Power loss (AC, hot) | 7.25 W |
| Power loss, per pole (AC, hot) | 2.4 W |
| Parameter | Value |
|---|---|
| Overload release setting range | 2.2 ... 3.2 A |
| Instantaneous short-circuit trip current | 42 A |
| Trip class | CLASS 10 |
| Breaking capacity at 240 V (AC) | 100 kA |
| Breaking capacity at 400 V (AC) | 100 kA |
| Breaking capacity at 500 V (AC) | 100 kA |
| Breaking capacity at 690 V (AC) | 10 kA |
| Breaking capacity at 240 V | 100 kA |
| Breaking capacity at 690 V | 10 kA |
| Short-circuit trip type | magnetic |
| Overload release type | thermal |
| Short-circuit protection | Yes |
| Phase-failure detection | Yes |
| Ground-fault detection | No |
| Auxiliary switch extendable | Yes |
| Parameter | Value |
|---|---|
| Endurance, main contacts (typ.) | 100 000 |
| Endurance, auxiliary contacts (typ.) | 100 000 |
| Switching frequency, AC-3 (max.) | 15 1/h |
| Auxiliary CO (changeover) contacts | 0 |
| Parameter | Value |
|---|---|
| Main-circuit terminal type | spring-loaded terminals |
| Main-circuit connector arrangement | Top and bottom |
| Conductor cross-section, solid / stranded | 2x (0,5 ... 4 mm²) |
| Conductor cross-section, finely stranded with ferrule | 2x (0.5 ... 2.5 mm²) |
| Conductor range, AWG (main contacts) | 2x (20 ... 12) |
| Parameter | Value |
|---|---|
| Height | 106 mm |
| Width | 45 mm |
| Depth | 97 mm |
| Mounting method | screw and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715 |
| Mounting position | any |
| Parameter | Value |
|---|---|
| Operating temperature | -20 ... +60 °C |
| Storage temperature | -50 ... +80 °C |
| Transport temperature | -50 ... +80 °C |
| Relative humidity (operation) | 10 ... 95 % |
| Max. installation altitude | 2 000 m |
| Parameter | Value |
|---|---|
| Design Of The Product | For motor protection |
Clearance requirements: 50 mm upwards and downwards, 30 mm at the sides, and zero clearance forwards and backwards. The unit is rated for a maximum of 15 operating cycles per hour under AC-3 and AC-3e duty.
For coordination with upstream fuses, the recommended gL/gG ratings are 25 A at 400 V, 32 A at 500 V, and 25 A at 690 V. Horsepower ratings span from 0.1 hp at 110/120 V up to 2 hp at 460/480 V and 575/600 V. The breaker does not include ground fault detection.
It is a trip class 10 motor protection circuit breaker rated for 20-690 V, with a short-circuit breaking capacity of 100 kA at 400 V. It includes phase failure detection and uses spring-loaded terminals.
Clearances required: 50 mm upwards and downwards, 30 mm at the sides, and zero clearance forwards and backwards. It can be mounted in any position on 35 mm DIN rail.
Recommended gL/gG fuses: 25 A at 400 V, 32 A at 500 V, and 25 A at 690 V.
