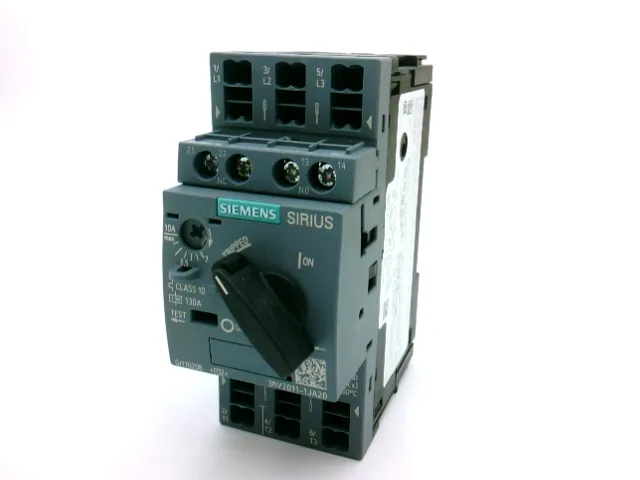

Siemens 3RV2011-1JA20 — Motor Protection Circuit Breakers (MPCB)

Siemens 3RV2011-1JA20 SIRIUS Circuit Breaker, Class 10, 100

MPN3RV2011-1JA20
Active

Siemens SIRIUS motor protection circuit breaker, 3RV2011-1JA20, Class 10 trip, 100 kA breaking capacity at 400 V, spring-loaded terminals, screw and snap-on 35 mm DIN rail mount.

$28.58Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

3RV2011-1JA20 — Identification
ParameterValue
SeriesSIRIUS
Product designationCircuit breaker
Frame sizeS00
3RV2011-1JA20 — Electrical
ParameterValue
Rated operational current (Ie)10 A
Rated voltage20 ... 690 V
Rated voltage, AC-3 (max.)690 V
Rated frequency50 ... 60 Hz
Rated insulation voltage (Ui), pollution degree 3690 V
Rated impulse withstand voltage (Uimp)6 kV
Number of poles3
Power loss (AC, hot)9.25 W
Power loss, per pole (AC, hot)3.1 W
3RV2011-1JA20 — Protection & Tripping
ParameterValue
Overload release setting range7 ... 10 A
Instantaneous short-circuit trip current130 A
Trip classCLASS 10
Breaking capacity at 240 V (AC)100 kA
Breaking capacity at 400 V (AC)100 kA
Breaking capacity at 500 V (AC)42 kA
Breaking capacity at 690 V (AC)6 kA
Breaking capacity at 240 V100 kA
Breaking capacity at 690 V4 kA
Short-circuit trip typemagnetic
Overload release typethermal
Short-circuit protectionYes
Phase-failure detectionYes
Ground-fault detectionNo
Auxiliary switch extendableYes
3RV2011-1JA20 — Endurance & Switching
ParameterValue
Endurance, main contacts (typ.)100 000
Endurance, auxiliary contacts (typ.)100 000
Switching frequency, AC-3 (max.)15 1/h
Auxiliary CO (changeover) contacts0
3RV2011-1JA20 — Connections
ParameterValue
Main-circuit terminal typespring-loaded terminals
Main-circuit connector arrangementTop and bottom
Conductor cross-section, solid / stranded2x (0,5 ... 4 mm²)
Conductor cross-section, finely stranded with ferrule2x (0.5 ... 2.5 mm²)
Conductor range, AWG (main contacts)2x (20 ... 12)
3RV2011-1JA20 — Mechanical
ParameterValue
Height106 mm
Width45 mm
Depth97 mm
Mounting methodscrew and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
Mounting positionany
3RV2011-1JA20 — Environmental
ParameterValue
Operating temperature-20 ... +60 °C
Storage temperature-50 ... +80 °C
Transport temperature-50 ... +80 °C
Relative humidity (operation)10 ... 95 %
Max. installation altitude2 000 m
3RV2011-1JA20 — Specifications
ParameterValue
Design Of The ProductFor motor protection

Product details

Breaking capacity — the number that decides coordination

At 400 V AC this breaker is rated 100 kA — that is the interrupting capacity, not the continuous current. At 240 V it is also 100 kA; at 500 V it drops to 42 kA; at 690 V it is 4 kA. For most 400 V industrial panels fed by a 1 MVA transformer, 100 kA gives comfortable SCCR headroom without needing a current-limiting upstream fuse.

Mounting and wiring — panel-fit details

That is a spring cage, not a screw clamp; strip length and ferrule use matter for consistent pull-out force. Mounting position is any, so vertical or horizontal panel layouts work. Clearance requirements: 50 mm above and below, 30 mm to the sides, zero forward or backward.

Frequently asked questions

What are the key dimensions for panel layout?

Depth is 97 mm, width 45 mm, height 106 mm. Clearance: 50 mm above and below, 30 mm to the sides, zero forward or backward.

What breaking capacity does it have at 400 V?

100 kA at 400 V AC. Also 100 kA at 240 V, 42 kA at 500 V, and 4 kA at 690 V.

Does it detect phase failure?

Yes, phase failure detection is included — it will trip if one phase is lost, preventing single-phasing damage to the motor.

What type of terminals does it use?

Spring-loaded terminals for the main current circuit, accepting 2x (0.5 to 4 mm²) solid or stranded wire.

MPN
3RV2011-1JA20
