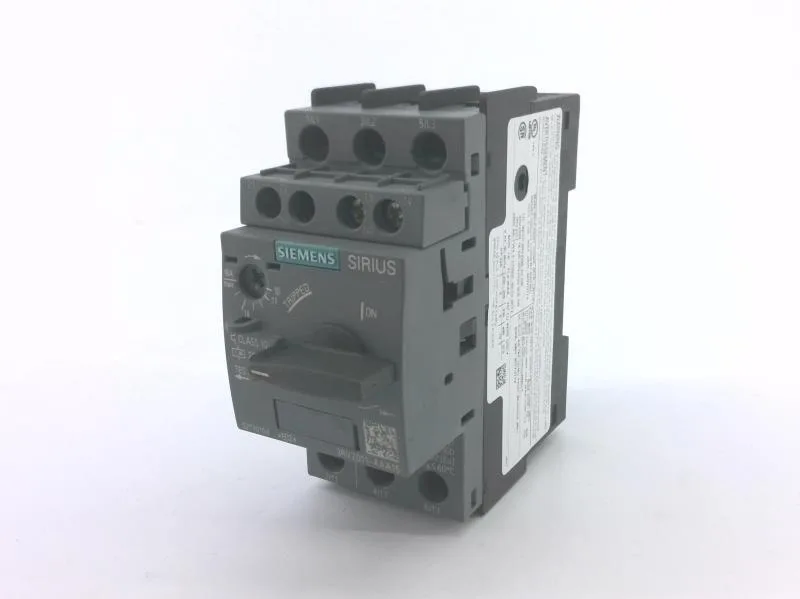

Siemens 3RV2011-4AA15 — Motor Protection Circuit Breakers (MPCB)

Siemens 3RV2011-4AA15 SIRIUS Motor Protection Circuit Breake

MPN3RV2011-4AA15
Active

Siemens SIRIUS motor protection circuit breaker, 3RV2011-4AA15, CLASS 10 trip, screw and snap-on 35 mm DIN rail mount, 100 kA breaking capacity at 240 V.

$46.99Ref. price · indicative, final on quote
Siemens 3RV2011-4AA15 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

3RV2011-4AA15 — Identification
ParameterValue
SeriesSIRIUS
Product designationCircuit breaker
Frame sizeS00
3RV2011-4AA15 — Electrical
ParameterValue
Rated operational current (Ie)16 A
Rated voltage20 ... 690 V
Rated voltage, AC-3 (max.)690 V
Rated frequency50 ... 60 Hz
Rated insulation voltage (Ui), pollution degree 3690 V
Rated impulse withstand voltage (Uimp)6 kV
Number of poles3
Power loss (AC, hot)9.25 W
Power loss, per pole (AC, hot)3.1 W
3RV2011-4AA15 — Protection & Tripping
ParameterValue
Overload release setting range10 ... 16 A
Instantaneous short-circuit trip current208 A
Trip classCLASS 10
Breaking capacity at 240 V (AC)100 kA
Breaking capacity at 400 V (AC)55 kA
Breaking capacity at 500 V (AC)10 kA
Breaking capacity at 690 V (AC)4 kA
Breaking capacity at 240 V100 kA
Breaking capacity at 690 V2 kA
Short-circuit trip typemagnetic
Overload release typethermal
Short-circuit protectionYes
Phase-failure detectionYes
Ground-fault detectionNo
Auxiliary switch extendableYes
3RV2011-4AA15 — Endurance & Switching
ParameterValue
Endurance, main contacts (typ.)100 000
Endurance, auxiliary contacts (typ.)100 000
Switching frequency, AC-3 (max.)15 1/h
Auxiliary CO (changeover) contacts0
3RV2011-4AA15 — Connections
ParameterValue
Main-circuit terminal typescrew-type terminals
Main-circuit connector arrangementTop and bottom
Conductor cross-section, solid / stranded2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Conductor cross-section, finely stranded with ferrule2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
Conductor range, AWG (main contacts)2x (18 ... 14), 2x 12
3RV2011-4AA15 — Mechanical
ParameterValue
Height97 mm
Width45 mm
Depth97 mm
Mounting methodscrew and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
Mounting positionany
3RV2011-4AA15 — Environmental
ParameterValue
Operating temperature-20 ... +60 °C
Storage temperature-50 ... +80 °C
Transport temperature-50 ... +80 °C
Relative humidity (operation)10 ... 95 %
Max. installation altitude2 000 m
3RV2011-4AA15 — Specifications
ParameterValue
Design Of The ProductFor motor protection

Product details

Rated breaking capacity reaches 100 kA at 240 V, 30 kA at 400 V, 5 kA at 500 V, and 2 kA at 690 V — figures that govern SCCR coordination in the panel. For motor sizing, the breaker carries 2 hp at 230 V and 16 A at both 480 V and 600 V.

Panel Integration & Wiring

The 45 mm wide footprint and snap-on DIN rail mounting simplify panel layout — no additional bracket or adapter needed. Main contact terminals accept 2× (0.5 to 1.5 mm²) solid or stranded, or 2× (0.75 to 2.5 mm²), with M3 screw terminals for the main contacts. Clearance requirements: 50 mm upwards and downwards, 30 mm at the sides, 0 mm forwards and backwards.

Frequently asked questions

What is 3RV2011-4AA15's listed depth and width?

The 3RV2011-4AA15 has a depth of 97 mm and a width of 45 mm, with a height of 97 mm — a standard 45 mm DIN-rail module.

What compliance documentation is available for 3RV2011-4AA15?

As a Siemens SIRIUS product, the 3RV2011-4AA15 is designed to meet applicable IEC and UL standards for motor protection circuit breakers. Specific RoHS, REACH, and UL documentation is available upon request through the RFQ process.

MPN
3RV2011-4AA15
