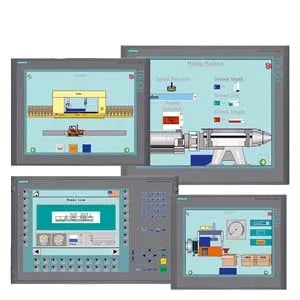

Siemens 6AV6644-0AC01-2AX1
MPN6AV6644-0AC01-2AX1
NRND
The new part, as of 01.01.2015, is blocked for delivery. Spare part can continue to be purchased as required, but price may deviate from new part. Further information under SIMATIC current entry ID: 109486162. For questions, the familiar contact persons are available to you. SIMATIC MP 377 19" Touch Multi Panel, Windows CE 5.0 19" color TFT display 12 MB configuration memory configurable from WinCC flexible 2007
$4,152.90 – $4,778.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Screen diagonal (size) | 19 in |
| Display technology | Hardware clock, battery backup, synchronizable |
| Display design | TFT |
| Touch screen | Yes; analog, resistive |
| Number of display colors | 65 536 |
| Backlight MTBF (at 25 °C) | 50 000 h |
| Parameter | Value |
|---|---|
| Alphanumeric keyboard | Yes |
| Parameter | Value |
|---|---|
| Current consumption (rated) | 2.5 A |
| Type of supply voltage | DC |
| Parameter | Value |
|---|---|
| Mounting cutout height | 379 mm |
| Mounting cutout width | 449 mm |
| Overall depth | 75 mm |
| Front panel height | 400 mm |
| Front panel width | 483 mm |
| Weight (without packaging) | 7.7 kg |
| Parameter | Value |
|---|---|
| Ingress protection, front | IP65 |
| Ingress protection, rear | IP20 |
| Max. | 60 °C |
| Min. | -20 °C |
| Relative humidity, operation, max. | 90 % |
| Parameter | Value |
|---|---|
| CE mark | Yes |
| cULus listed | Yes |
| ATEX Zone 2 | No; certificate no longer available as of 1 October 2020 |
MPN
6AV6644-0AC01-2AX1
