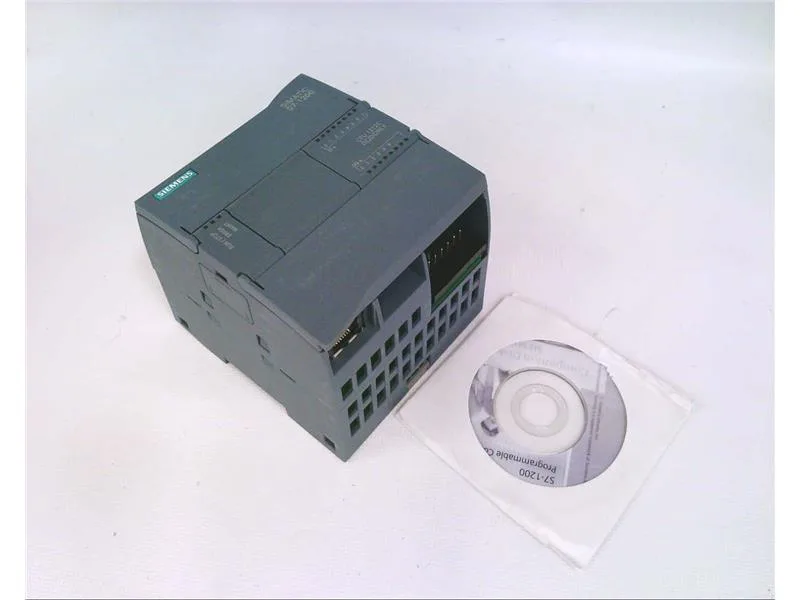

Siemens 6ES7212-1HD30-0XB0 CPU 1212C
MPN6ES7212-1HD30-0XB0
***Spare part*** SIMATIC S7-1200, CPU 1212C, compact CPU, DC/DC/relay, onboard I/O: 8 DI 24 V DC; 6 DO relay 2 A; 2 AI 0-10 V DC, Power supply: DC 20.4-28.8 V DC, Program/data memory 25 KB
$313.00 – $393.48Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
I/O
| Parameter | Value |
|---|---|
| Digital inputs | 8; Integrated |
| Digital outputs | 6; Relays |
| Input data area | 1 024 byte |
| Output data area | 1 024 byte |
Processor & Memory
| Parameter | Value |
|---|---|
| Execution time, bit operations (typ.) | 0.1 µs; / Operation |
| Execution time, word operations (typ.) | 12 µs; / Operation |
| Execution time, floating-point arithmetic (typ.) | 18 µs; / Operation |
| Size, max. | 4 kbyte; Size of bit memory address area |
Programming
| Parameter | Value |
|---|---|
| Programming language: FBD | Yes |
| Programming language: LAD | Yes |
| Programming language: SCL | Yes |
Electrical
| Parameter | Value |
|---|---|
| Rated value (DC) | 24 V |
| Current consumption (rated) | 175 mA; Typical |
| Permissible range, lower limit (DC) | 5 V |
| Permissible range, upper limit (DC) | 250 V |
| Power loss (typ.) | 9 W |
| Short-circuit protection | No; to be provided externally |
Environmental
| Parameter | Value |
|---|---|
| Temperature, min. | -40 °C |
| Temperature, max. | 70 °C |
| Operating temperature, min. (horizontal mounting) | 0 °C |
| Operating temperature, max. (horizontal mounting) | 55 °C |
Mechanical
| Parameter | Value |
|---|---|
| Width | 90 mm |
| Height | 100 mm |
| Depth | 75 mm |
| Weight (approx.) | 385 g |
Communication
| Parameter | Value |
|---|---|
| Interface type | PROFINET |
MPN
6ES7212-1HD30-0XB0
