6ES7312-1AD10-0AB0
MPN6ES7312-1AD10-0AB0
End of Life

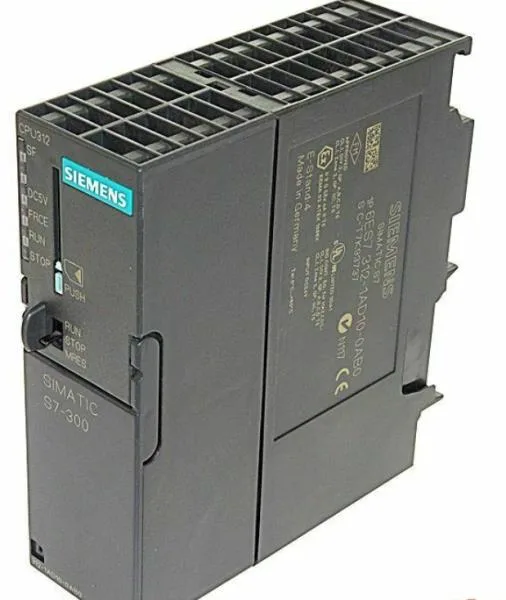

SIMATIC S7-300, CPU 312 CPU WITH MPI INTERFACE INTEGRATED 24 V DC POWER SUPPLY 16 KBYTE WORKING MEMORY MICRO MEMORY CARD NECESSARY
$227.33Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Execution time, bit operations (typ.) | 0.2 µs |
| Execution time, word operations (typ.) | 0.4 µs |
| Execution time, floating-point arithmetic (typ.) | 6 µs |
| Size, max. | 16 kbyte |
| Parameter | Value |
|---|---|
| Expandable | No |
| Input data area | 64 |
| Output data area | 64 |
| Parameter | Value |
|---|---|
| Programming language: FBD | Yes |
| Programming language: LAD | Yes |
| Parameter | Value |
|---|---|
| Rated value (DC) | 24 V |
| Current consumption (rated) | 0.6 A |
| Permissible range, lower limit (DC) | 20.4 V |
| Permissible range, upper limit (DC) | 28.8 V |
| Power loss (typ.) | 2.5 W |
| Parameter | Value |
|---|---|
| Width | 40 mm |
| Height | 125 mm |
| Depth | 130 mm |
| Weight (approx.) | 270 g |
| Parameter | Value |
|---|---|
| Interface type | Integrated RS 485 interface |
MPN
6ES7312-1AD10-0AB0
