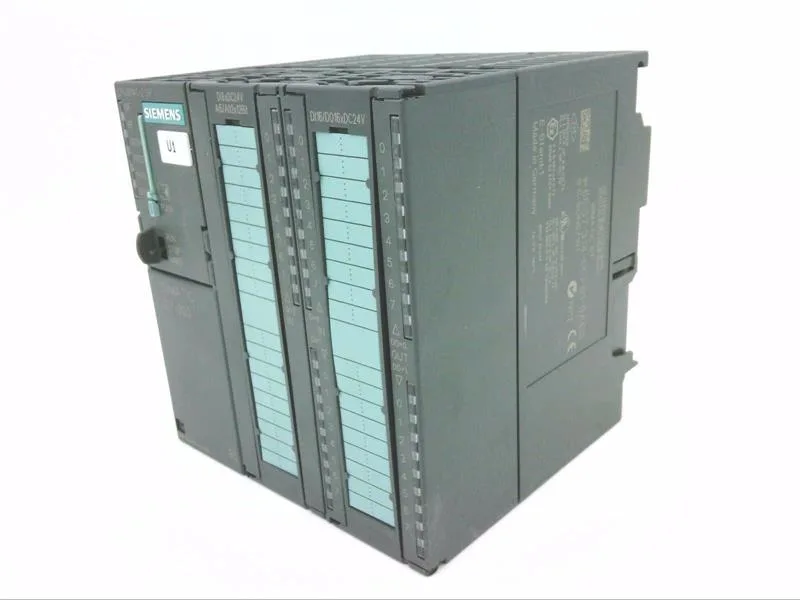

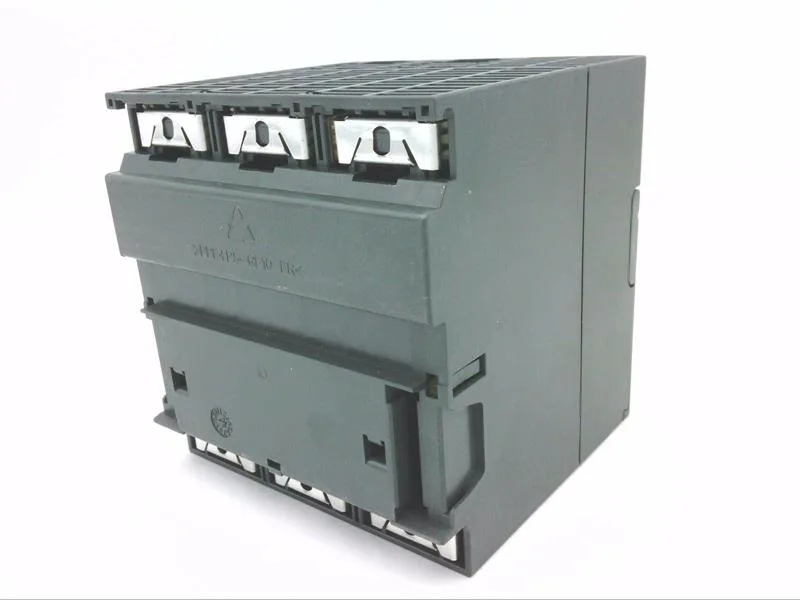

Siemens 6ES7314-6CF01-0AB0 S7-300 CPU
MPN6ES7314-6CF01-0AB0
End of Life
SIMATIC S7-300, CPU 314C-2DP COMPACT CPU WITH MPI, 24 DI/16 DO, 4AI, 2AO, 1 PT100, 4 FAST COUNTERS (60 KHZ), INTEGRATED DP INTERFACE, INTEGRATED 24V DC POWER SUPPLY, 48 KBYTE WORKING MEMORY, FRONT CONNECTOR (X 40PIN) AND MICRO MEMORY CARD REQUIRED
$1,270.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jul 2026
Specifications
I/O
| Parameter | Value |
|---|---|
| Digital inputs | 24 |
| Digital outputs | 16 |
| Expandable | No |
| Input data area | 244 byte |
| Output data area | 244 byte |
Processor & Memory
| Parameter | Value |
|---|---|
| Execution time, bit operations (typ.) | 0.1 µs |
| Execution time, word operations (typ.) | 0.2 µs |
| Execution time, floating-point arithmetic (typ.) | 3 µs |
| Size, max. | 16 kbyte |
Programming
| Parameter | Value |
|---|---|
| Programming language: FBD | Yes |
| Programming language: LAD | Yes |
| Programming language: SCL | Yes |
Electrical
| Parameter | Value |
|---|---|
| Rated value (DC) | 24 V |
| Current consumption (rated) | 1 000 mA |
| Permissible range, lower limit (DC) | 20.4 V |
| Permissible range, upper limit (DC) | 28.8 V |
| Power loss (typ.) | 14 W |
| Short-circuit protection | Yes; Clocked electronically |
Mechanical
| Parameter | Value |
|---|---|
| Width | 120 mm |
| Height | 125 mm |
| Depth | 130 mm |
| Weight (approx.) | 676 g |
Communication
| Parameter | Value |
|---|---|
| Interface type | Integrated RS 485 interface |
MPN
6ES7314-6CF01-0AB0
