Siemens 6ES7314-6CF02-0AB0 — PLCs (Programmable Logic Controllers)

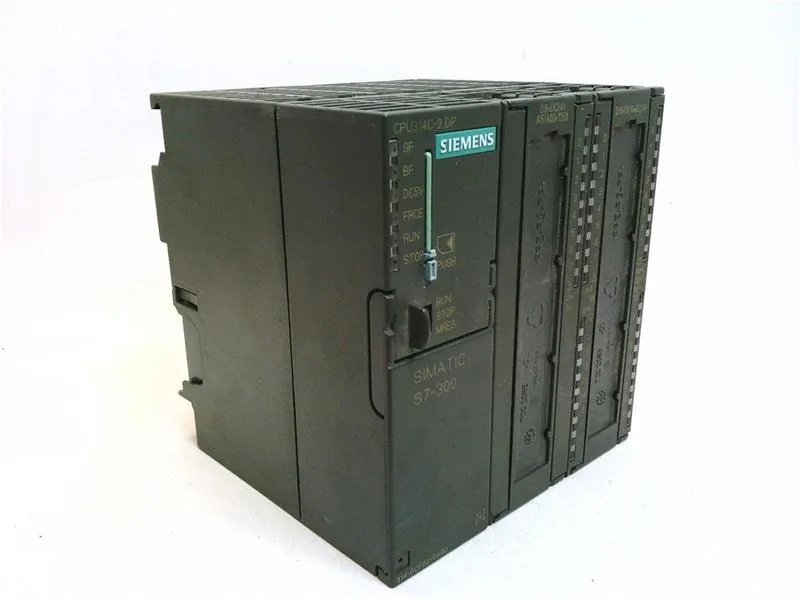

Siemens 6ES7314-6CF02-0AB0 PLC CPU

MPN6ES7314-6CF02-0AB0
End of Life

SIMATIC S7-300, CPU 314C-2DP COMPACT CPU WITH MPI, 24 DI/16 DO, 4AI, 2AO, 1 PT100, 4 FAST COUNTERS (60 KHZ), INTEGRATED DP INTERFACE, INTEGRATED 24V DC POWER SUPPLY, 64 KBYTE WORKING MEMORY, FRONT CONNECTOR (X 40PIN) AND MICRO MEMORY CARD REQUIRED

$762.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

6ES7314-6CF02-0AB0 — I/O
ParameterValue
Digital inputs24
Digital outputs16
ExpandableNo
Input data area244 byte
Output data area244 byte
6ES7314-6CF02-0AB0 — Processor & Memory
ParameterValue
Execution time, bit operations (typ.)0.1 µs
Execution time, word operations (typ.)0.2 µs
Execution time, floating-point arithmetic (typ.)3 µs
Size, max.16 kbyte
6ES7314-6CF02-0AB0 — Programming
ParameterValue
Programming language: FBDYes
Programming language: LADYes
Programming language: SCLYes
6ES7314-6CF02-0AB0 — Electrical
ParameterValue
Rated value (DC)24 V
Current consumption (rated)1 000 mA
Permissible range, lower limit (DC)20.4 V
Permissible range, upper limit (DC)28.8 V
Power loss (typ.)14 W
Short-circuit protectionYes; Clocked electronically
6ES7314-6CF02-0AB0 — Mechanical
ParameterValue
Width120 mm
Height125 mm
Depth130 mm
Weight (approx.)676 g
6ES7314-6CF02-0AB0 — Communication
ParameterValue
Interface typeIntegrated RS 485 interface
