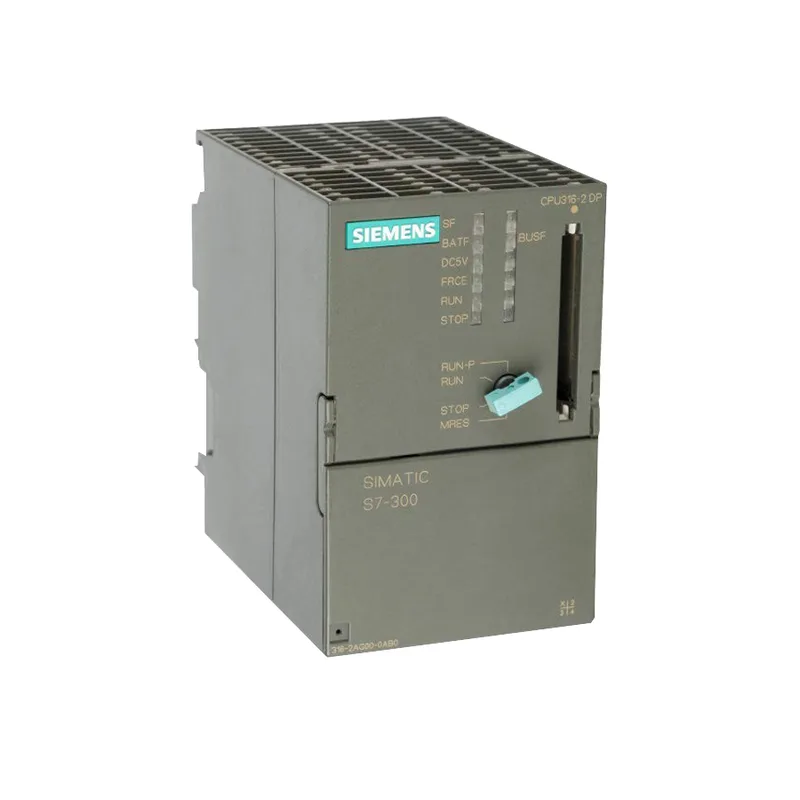

Siemens 6ES7316-2AG00-0AB0 — PLCs (Programmable Logic Controllers)

Siemens 6ES7316-2AG00-0AB0 S7-300 CPU 316-2DP, EOL

MPN6ES7316-2AG00-0AB0
End of Life

Siemens S7-300 CPU 316-2DP, 6ES7316-2AG00-0AB0, 128 KB work memory, 24 VDC, 10 W, end-of-life status.

$450.00 – $1,169.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

6ES7316-2AG00-0AB0 — Processor & Memory
ParameterValue
Execution time, bit operations (typ.)0.3 µs
Execution time, word operations (typ.)1 µs
Execution time, floating-point arithmetic (typ.)50 µs
Size, max.256 byte
6ES7316-2AG00-0AB0 — I/O
ParameterValue
Input data area1 024
Output data area1 024
6ES7316-2AG00-0AB0 — Programming
ParameterValue
Programming language: FBDYes
Programming language: LADYes
Programming language: SCLYes
6ES7316-2AG00-0AB0 — Electrical
ParameterValue
Rated value (DC)24 V
Current consumption (rated)1 000 mA
Permissible range, lower limit (DC)20.4 V
Permissible range, upper limit (DC)28.8 V
Power loss (typ.)10 W
6ES7316-2AG00-0AB0 — Mechanical
ParameterValue
Width80 mm
Height125 mm
Depth130 mm
Weight (approx.)530 g; Memory card 16 g
6ES7316-2AG00-0AB0 — Specifications
ParameterValue
Expandable FEPROMYes; Flash-EPROM

Product details

CPU 316-2DP — end-of-life reality for a mid-range S7-300

The 6ES7316-2AG00-0AB0: Rated at 24 VDC with a typical power loss of 10 W, this CPU is built for the standard S7-300 form factor — 80 mm wide, 125 mm tall, 130 mm deep — and mounts directly on the DIN rail in the same rack as I/O and function modules.

Programming and function module support

The CPU is programmed via STEP 7 V5.0 and supports LAD, FBD, STL, SCL, GRAPH, and HiGraph® — covering ladder, function block, statement list, structured text, and sequential control. CFC (Continuous Function Chart) is also supported, making it suitable for process-oriented programming. It handles up to 8 function modules (FM) and 8 dynamic blocks, with 4 static blocks. The command set includes binary logic, arithmetic, comparison, shift, rotate, and block-call operations, with a configurable cycle time between 1 ms and 6,000 ms.

Frequently asked questions

Is 6ES7316-2AG00-0AB0 obsolete?

Buyers need to know lifecycle status to avoid purchasing discontinued parts.

What is the price of 6ES7316-2AG00-0AB0?

Price is a primary factor in sourcing decisions for budget and procurement teams.

Where can I buy 6ES7316-2AG00-0AB0?

Directs buyers to authorized distributors, reducing risk of counterfeits.

What is the work memory of CPU 316-2DP?

Memory capacity determines if the CPU fits the application requirements.

Can I use 6ES7316-2AG00-0AB0 as a replacement for 6ES7316-2AG00-0AB1?

Ensures compatibility when substituting similar part numbers.

What programming languages does 6ES7316-2AG00-0AB0 support?

Engineers need to know compatibility with their preferred programming environment.
