Siemens S7-300 dummy module DM 370, 6ES7370-0AA01-0AA0, depth 120 mm, width 40 mm, height 125 mm, power loss 0.03 W.
| Parameter | Value |
|---|---|
| Digital inputs | 0 |
| Digital outputs | 0 |
| Analog inputs | 0 |
| Parameter | Value |
|---|---|
| Current consumption from backplane bus (5 V DC), max. | 5 mA |
| Parameter | Value |
|---|---|
| Height | 125 mm |
| Width | 40 mm |
| Depth | 120 mm |
| Weight (approx.) | 180 g |
| Parameter | Value |
|---|---|
| Power loss, max. | 0.03 W |
| Number of analog outputs | 0 |

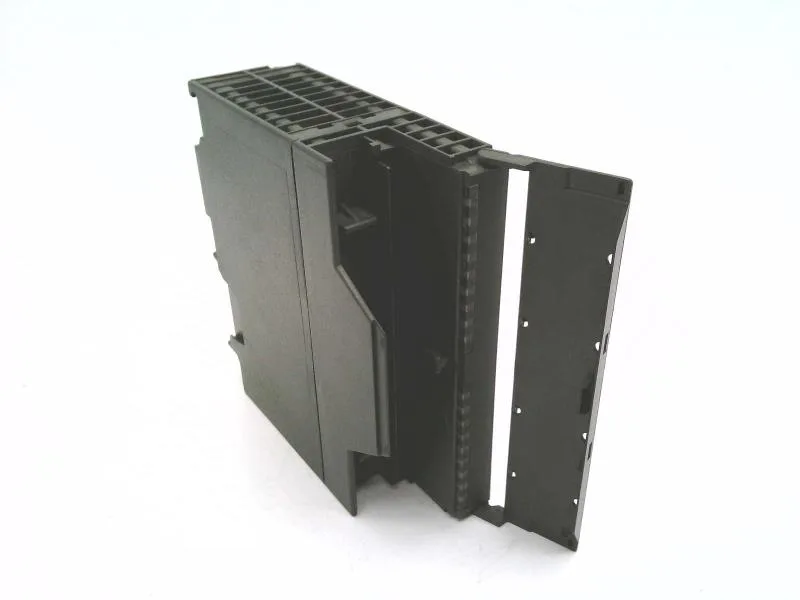

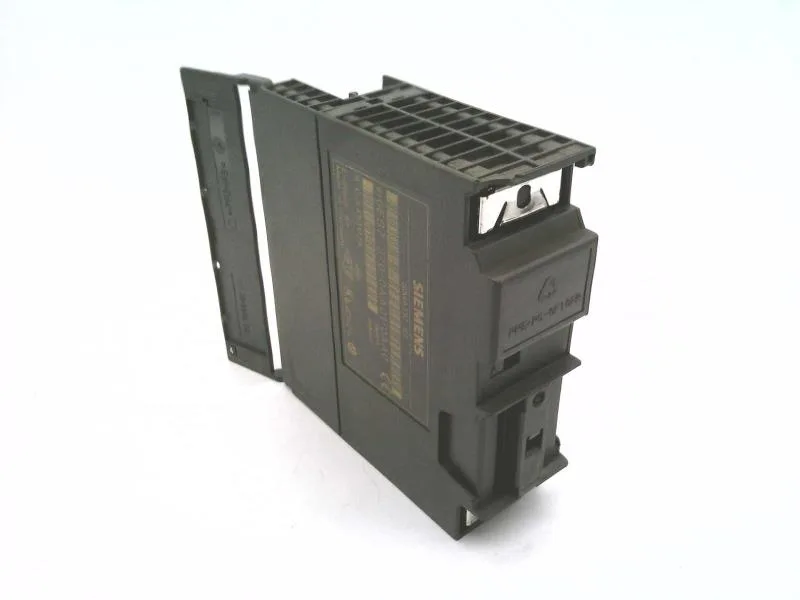

The Siemens 6ES7370-0AA01-0AA0 is a SIMATIC S7-300 dummy module DM 370 — a placeholder module used to occupy a slot in the rack when a real module is removed for service or replacement, keeping the bus termination intact.
Genuine is genuine, even when it crosses borders later in its lifecycle. Let me be transparent: this part is available through surplus and broker channels. We can source it to order; submit an RFQ with your required quantity and target lead time.
Width 40 mm, height 125 mm, depth 120 mm. It fits a standard single-wide S7-300 slot.
