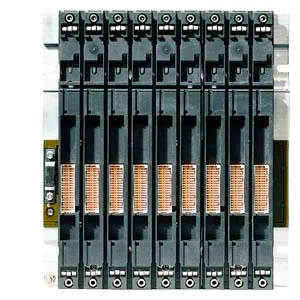

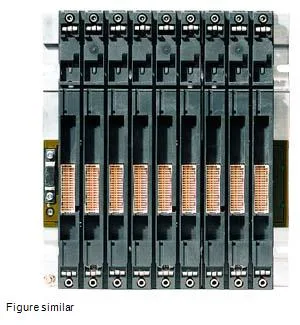

Siemens SIMATIC S7-400 ER2 aluminum rack, order code 6ES7403-1JA11-0AA0, 9 slots, for signal modules, 2 redundant PS, 257.5 x 290 x 27.5 mm, 1250 g, phase-out.
| Parameter | Value |
|---|---|
| Max. | 70 °C |
| Parameter | Value |
|---|---|
| Min. | 0 °C |
| Parameter | Value |
|---|---|
| Height | 290 mm |
| Width | 257.5 mm |
| Depth | 27.5 mm |
| Weight (approx.) | 1 250 g |
| Parameter | Value |
|---|---|
| CE mark | Yes |
| Parameter | Value |
|---|---|
| CCC | Yes |
| P bus | Yes |
| UKCA mark | Yes |
| FM approval | Yes |
| KC approval | Yes |
| UL approval | Yes |
| Number of slots | 9 |
| Communication bus | No |
| EAC (formerly Gost-R) | Yes |
| RCM (formerly C-TICK) | Yes |
| Rack profile material | aluminum |
The 6ES7403-1JA11-0AA0 is a Siemens SIMATIC S7-400 ER2 aluminum extended rack with 9 slots, designed to house signal modules and support up to two redundant power supplies. This rack provides the backplane and mechanical mounting for an S7-400 expansion segment. Siemens has classified this part as phase-out.
