Siemens 6GT2821-2AC10

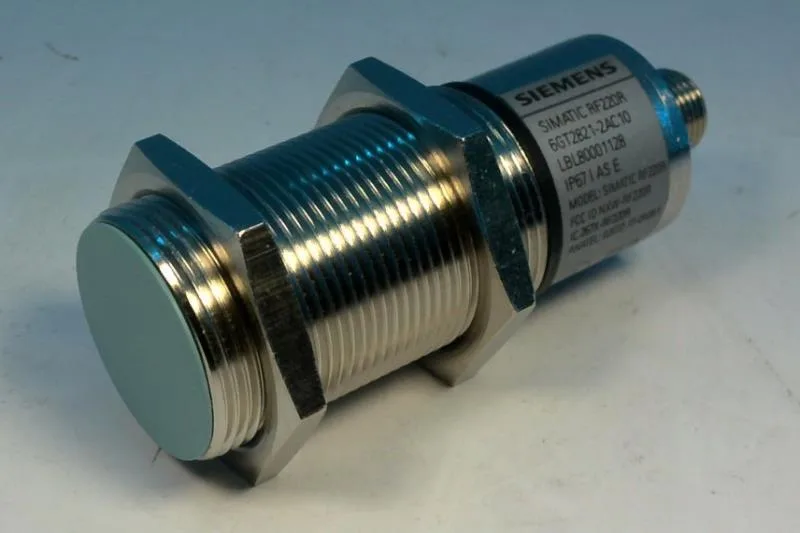

Siemens 6GT2821-2AC10 SIMATIC RF220R RFID Reader, 13.56 MHz,

MPN 6GT2821-2AC10
Active

Siemens SIMATIC RF200 RF220R RFID reader, 6GT2821-2AC10, RS422 interface, 13.56 MHz, IP67, M30 x 71 mm, -25 to +70 °C.

$147.32 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

6GT2821-2AC10 specifications
ParameterValue
IP ratingIP67
Mounting2 nuts M30 x 1.5 (included in scope of supply)
Shock acceleration500 m/s²
Colorsilver/pastel turquoise
Height83 mm
MaterialBrass, nickel-plated, PBT
Diameter30 mm

Product details

The Siemens 6GT2821-2AC10 is a SIMATIC RF200 series RF220R RFID reader with an integrated antenna, operating at 13.56 MHz and communicating via an RS422 interface using the 3964R protocol. It reads and writes ISO 15693 and ISO 18000-3 transponders, with a typical access time of 0.6 ms per byte for both read and write operations. The housing is rated IP67, meaning the reader withstands dust ingress and temporary immersion — suitable for washdown environments in food, beverage, or automotive assembly lines. The brass, nickel-plated / PBT construction with silicon-free materials suits clean-room or paint-shop installations where outgassing or contamination is a concern. Power draw is 0.05 A typical at 24 V DC, supplied through the M12 8-pin connector. The supply range is 20.4 to 28.8 V DC, which gives headroom for voltage drop over longer cable runs up to 1000 m on the RS422 interface.

Read range and deployment constraints

Maximum read range is 35 mm, but this is dependent on the specific ISO 15693 transponder type used. The reader is not multitag-capable — it handles one transponder at a time. For applications requiring simultaneous tag reads, a different RF200 variant or a higher-tier RF300/RF600 reader would be needed. The reader is designed to operate from -20 to +70 °C and can be stored or transported from -25 to +80 °C. Shock resistance per EN 60721-3-7 Class 7 M2 at 500 m/s² and vibration resistance at 200 m/s² mean it survives the mechanical stress of conveyor lines, robotic cells, or mobile equipment. Mounting uses the included M30 x 1.5 nuts through a 30 mm diameter hole. The 83 mm height and 71 mm body length fit standard sensor mounting brackets. The 3-color LED on the housing gives local status indication without needing to open the panel.

Sourcing is straightforward through standard Siemens distribution channels. For BOM-line commitments, the RS422 interface and 13.56 MHz frequency are the key fit parameters — verify the transponder type and cable length against your existing installation.

MPN
6GT2821-2AC10
