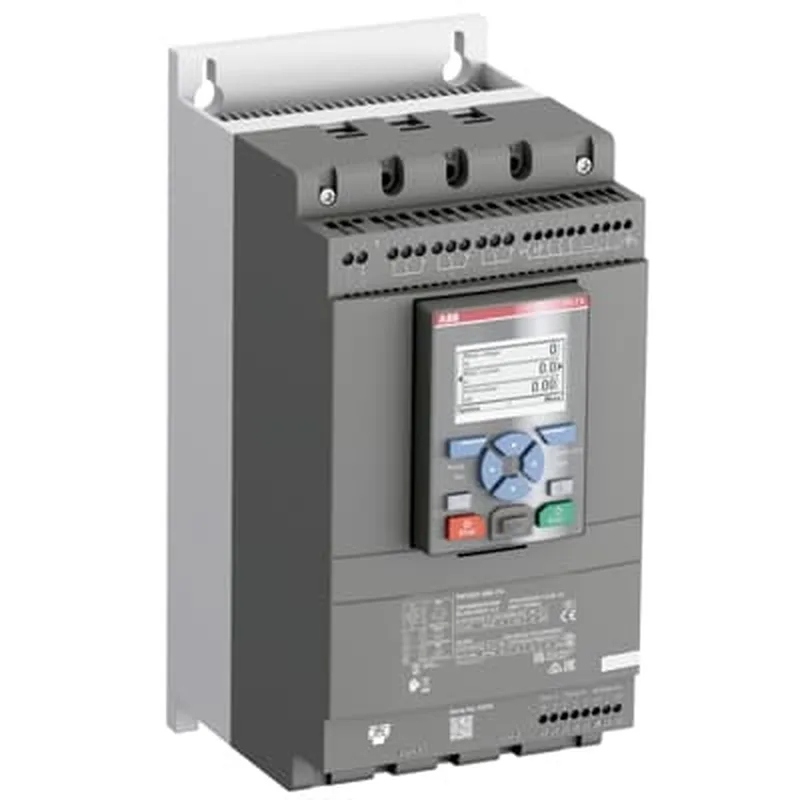

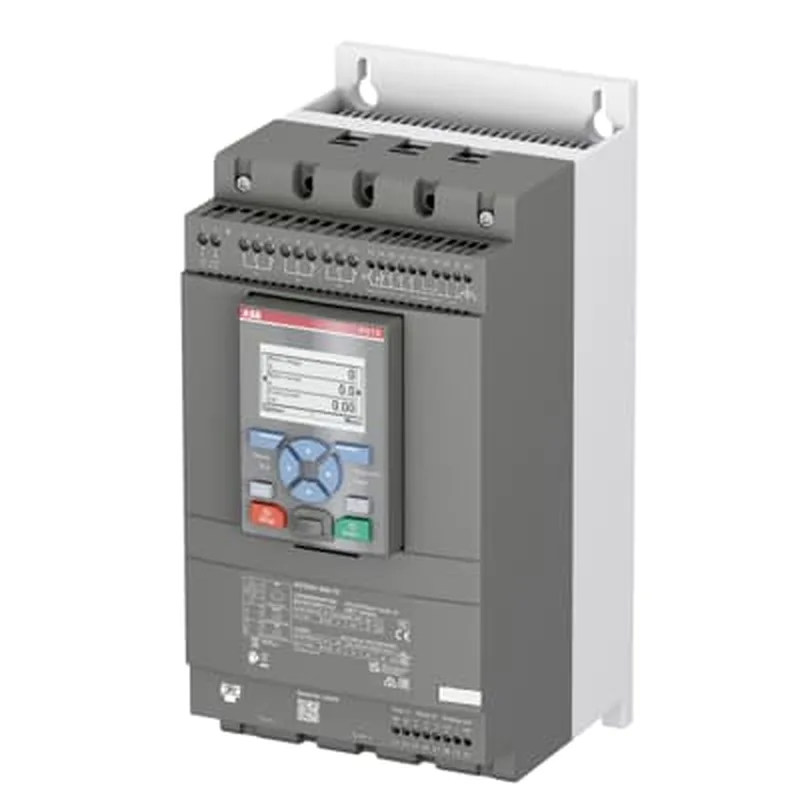

The ABB PSTX37-690-70 softstarter (1SFA898204R7000) is a current-production motor controller with auto phase sequence detection — it verifies the incoming phase rotation before the motor starts, preventing a reverse-run condition that can damage driven loads like pumps or conveyors.
The built-in electronic overload replaces a separate thermal overload relay — one device handles both starting and protection, saving panel space and wiring. The ramp time is adjustable from 1 to 120 seconds, which means you can tune the acceleration profile for a high-inertia fan or a loaded conveyor without adding an external timer. The control circuit runs on 24 V DC, standard for PLC-driven panels; the main control supply accepts 100...250 V AC, so it can share a control transformer with contactors.
Fieldbus and integration
This softstarter speaks ten fieldbus protocols natively: Modbus RTU, Modbus TCP, EtherNet/IP, EtherCAT, DeviceNet, CANopen, Profibus, PROFINET, BACnet IP, and BACnet MSTP. No external gateway is needed for most automation networks — it connects directly to the PLC or building management system. The analog outputs provide 0-10 V, 0-20 mA, or 4-20 mA signals for external metering or drive profiling.
Protection and diagnostics
The protection suite covers earth fault, phase reversal, locked rotor, voltage imbalance, and user-defined conditions — 20+ protection functions in total. The warning list gives early alerts for fan failure, thyristor overload, harmonic distortion, and motor runtime limits, so a maintenance team can act before a trip. Three status LEDs — red for fault, green for running, yellow for protection — give a quick visual at the cabinet door.
