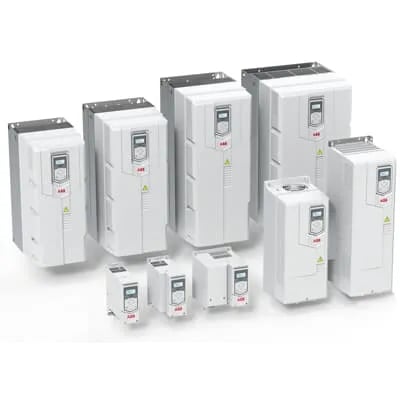

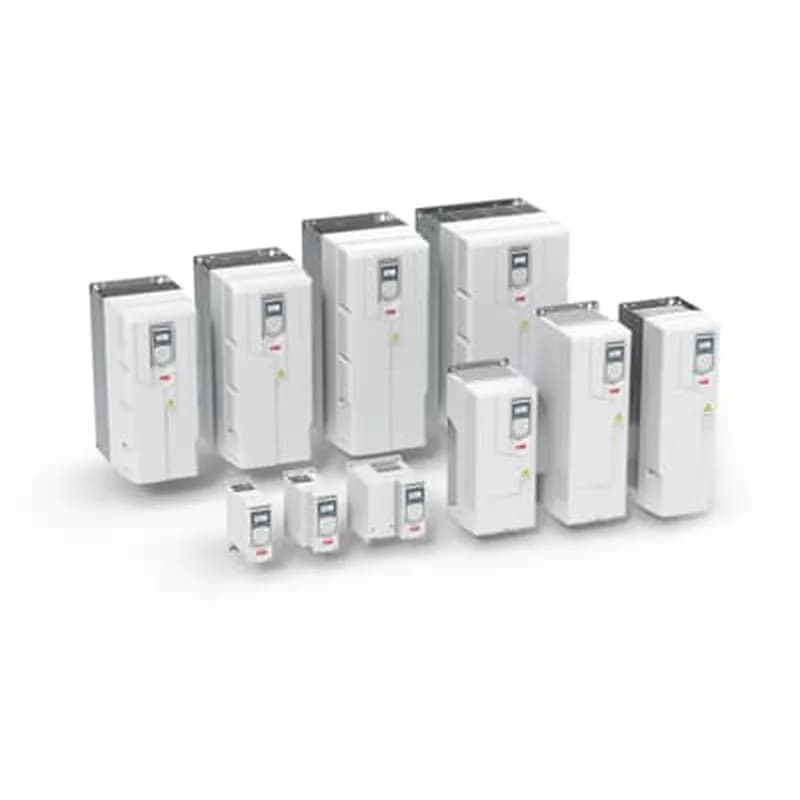

ABB 3AXD50000047641 — AC Drive (VFD) 480V

ABB 3AXD50000047641 ACS560-01-03A3-4 Drive, 1.1 kW, 3.3 A

MPN3AXD50000047641
Active

ABB ACS560-01-03A3-4, 1.1 kW normal-use output, 3.3 A, 380...480 V 3-phase input, IP20, wall-mounted, frame size R0.

StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

Power & Output

3AXD50000047641 — Power & Output
ParameterValue
Output power, normal duty1.1 kW
Output current, normal duty3.3 A
Output power, heavy duty0.75 kW
Output current, heavy duty2.6 A
Output power, light overload1.1 kW
Output current, light overload3.1 A
Apparent power output2.0 kV·A
Efficiency class (IE)IE2
Standby power loss15 W

Input / Supply

3AXD50000047641 — Input / Supply
ParameterValue
Input voltage range380 ... 480 V
Number of phases3-phase
Frequency47 ... 63 Hz

Mechanical & Cooling

3AXD50000047641 — Mechanical & Cooling
ParameterValue
Frame sizeR0
NEMA enclosure typeOpen Type
Degree of protection (IP)IP20
Mounting typeWall-mounted

Environmental

3AXD50000047641 — Environmental
ParameterValue
Temperature rating (max.)Maximum 50 °C

Product details

The ABB ACS560-01-03A3-4 (3AXD50000047641) is a 1.1 kW normal-use drive, frame size R0, built for 380...480 V three-phase mains. It delivers 3.3 A continuous in normal use and 2.6 A under heavy-duty conditions (0.75 kW). The IP20 enclosure and wall-mounting footprint suit panel installations where ambient temperature stays under 50 °C. Standby loss is 15 W, so the heat load in a cabinet is modest.

Ratings So-What

The heavy-duty current of 2.6 A (PhD 0.75 kW) tells you this drive handles a 0.75 kW motor in constant-torque applications like conveyors or positive-displacement pumps. The light-overload rating of 3.1 A (PlD 1.1 kW) covers variable-torque loads such as fans and centrifugal pumps. IE2 efficiency class means it meets the current EU efficiency standard for drives.

Frequently asked questions

What is the frame size of this drive?

Frame size is R0. That is the smallest frame in the ACS560 family, suited for the 1.1 kW output level.

What are the key output ratings for normal, heavy-duty, and light-overload use?

Normal use: 1.1 kW, 3.3 A. Heavy-duty use: 0.75 kW, 2.6 A. Light-overload use: 1.1 kW, 3.1 A (–).
