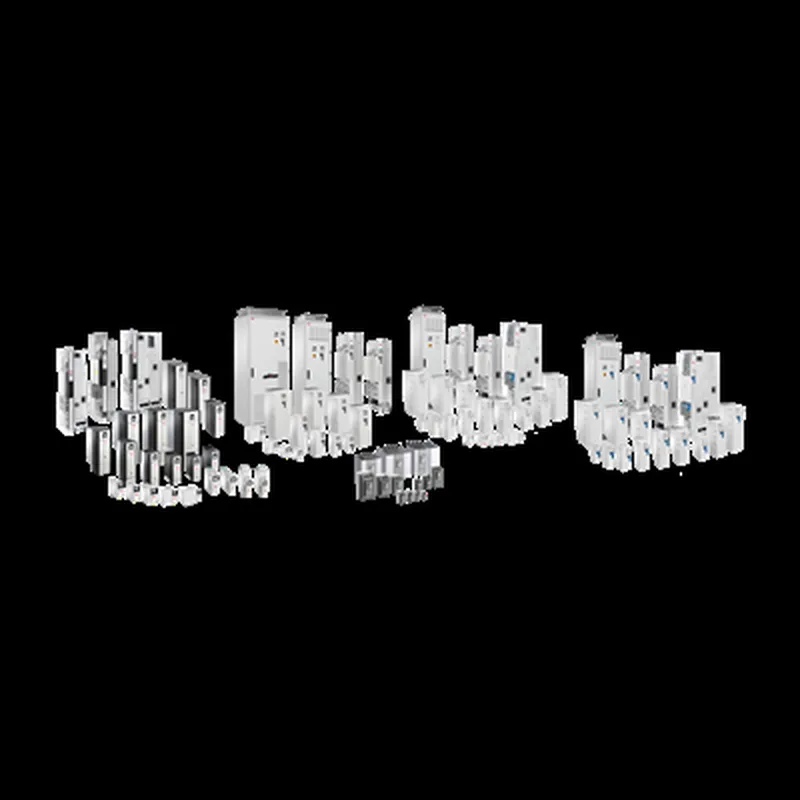

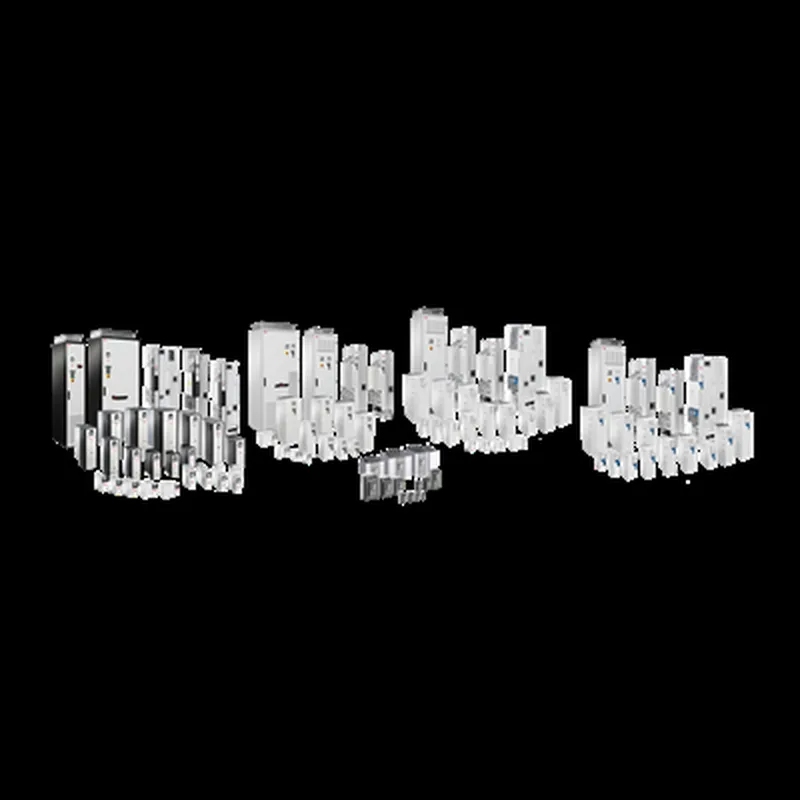

ABB 3AXD50000047650 — AC Drive (VFD) 480V

3AXD50000047650 ABB ACS560-01-039A-4 18.5 kW VFD, 39 A, IP20

MPN3AXD50000047650
Active

ABB ACS560 series, variable frequency drive, 3AXD50000047650, 18.5 kW normal use, 39 A output, 380-480 V 3-phase, IP20, frame R3.

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

3AXD50000047650 — Power & Output
ParameterValue
Output power, normal duty18.5 kW
Output current, normal duty39 A
Output power, heavy duty15 kW
Output current, heavy duty31.6 A
Output power, light overload18.5 kW
Output current, light overload36.1 A
Apparent power output27 kV·A
Efficiency class (IE)IE2
Standby power loss16 W
3AXD50000047650 — Input / Supply
ParameterValue
Input voltage range380 ... 480 V
Number of phases3-phase
Frequency47 ... 63 Hz
3AXD50000047650 — Mechanical & Cooling
ParameterValue
Frame sizeR3
NEMA enclosure typeOpen Type
Degree of protection (IP)IP20
Mounting typeWall-mounted
3AXD50000047650 — Environmental
ParameterValue
Temperature rating (max.)Maximum 40 °C

Product details

The 3AXD50000047650: Normal-use (light-overload) output is 18.5 kW at 39 A; heavy-duty output is 15 kW at 31.6 A. The heavy-duty figure governs continuous operation at 150% rated current for 60 seconds — the number to size against for pump, fan, or conveyor applications with occasional overload. Apparent power output is 27 kV·A. Frame size R3, wall-mounted, IP20 enclosure. Maximum ambient temperature is 40 °C; altitude rating is 1000 m without derating. Standby loss is 16 W — relevant for panel thermal budgeting in enclosed installations.

Frequently asked questions

What are the key output ratings for this drive?

Normal-use output is 18.5 kW at 39 A; heavy-duty output is 15 kW at 31.6 A. Light-overload output is 18.5 kW at 36.1 A.

What is the input voltage and frequency range?

Input voltage is 380 to 480 V, 3-phase, 47 to 63 Hz.

What is the frame size and mounting type?

Frame size R3, wall-mounted, IP20 protection degree.
