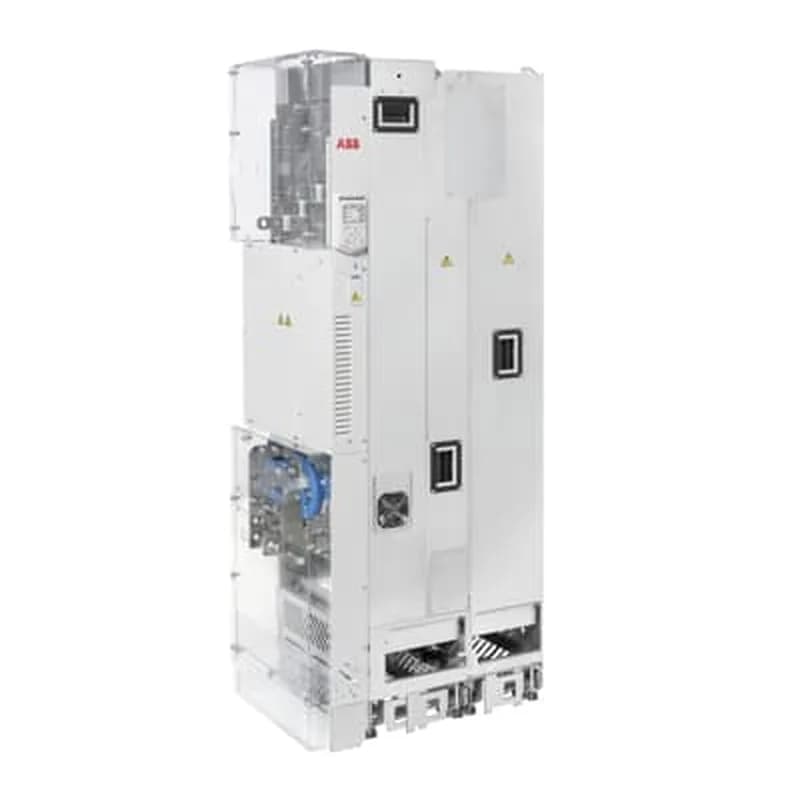

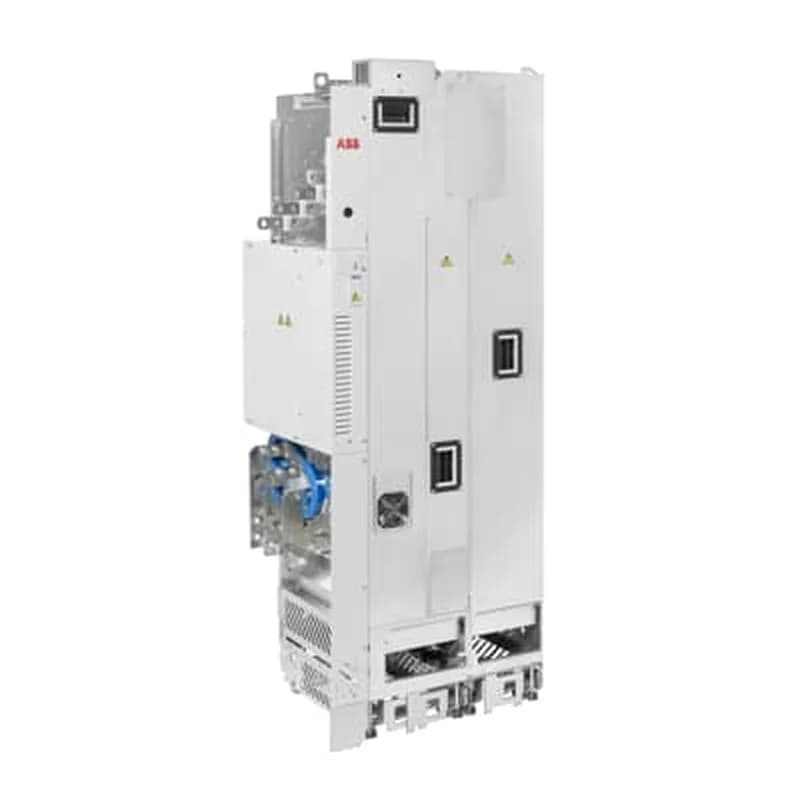

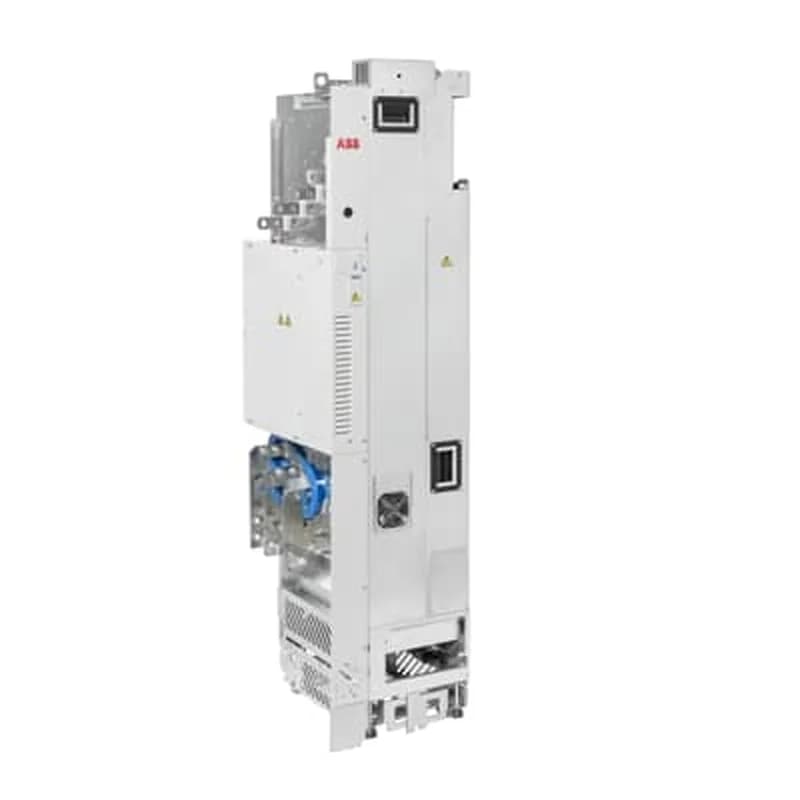

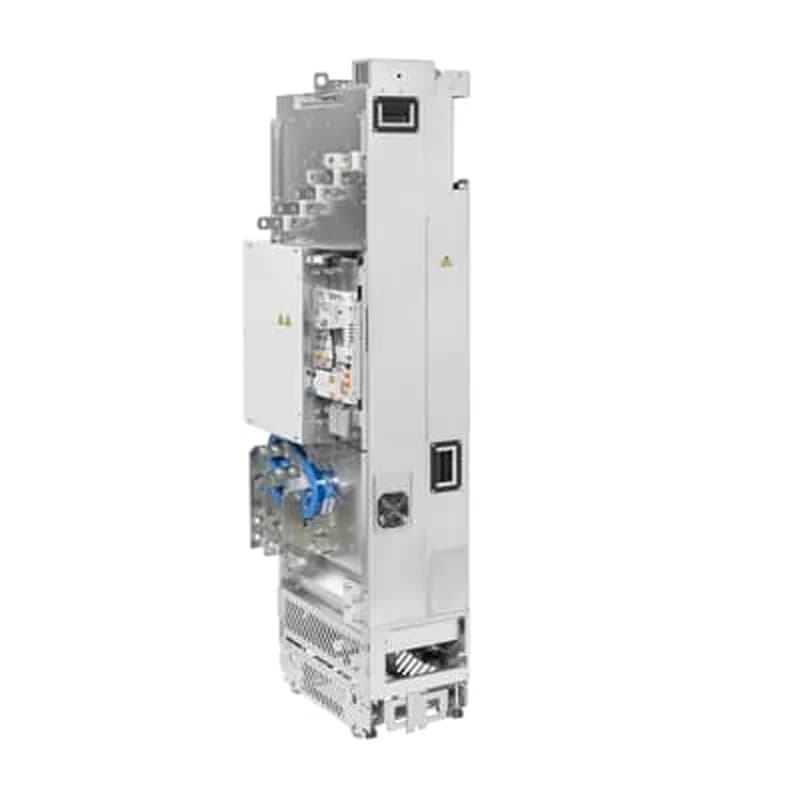

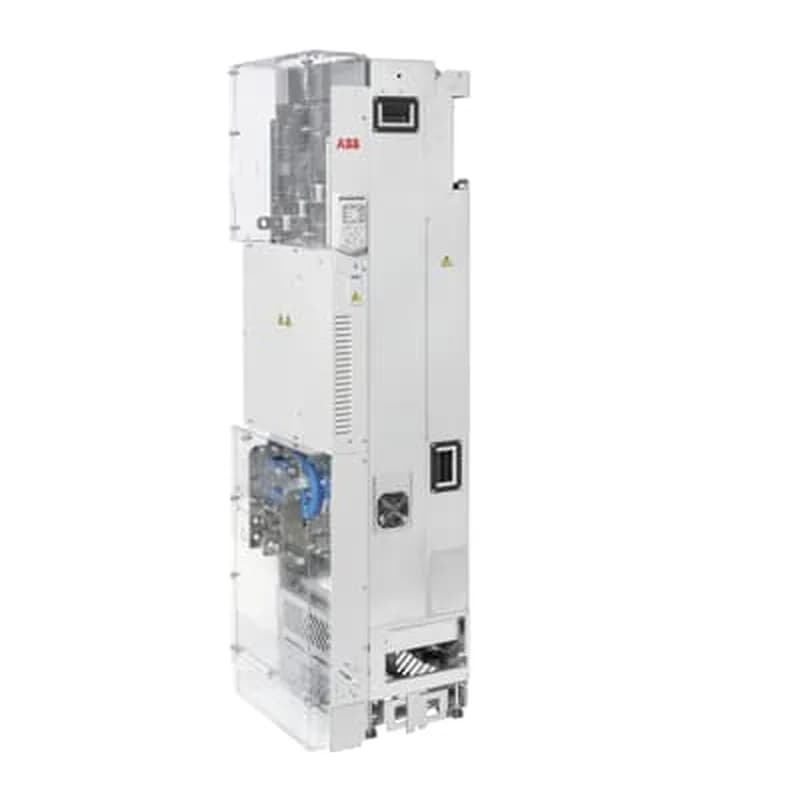

ABB, ACH580-34 series, LV AC ultra-low harmonic drive module, 3AXD50000507603, Frame R11, 240 A light-overload, 200 Hp, 480 V UL.
| Parameter | Value |
|---|---|
| Frequency | 47.5 ... 63 Hz |
| Parameter | Value |
|---|---|
| Output current, light overload (UL rating) | 240 A |
| Output power, light overload (UL rating, Hp) | 200 Hp |
| Parameter | Value |
|---|---|
| Frame size | R11 |
| Mounting type | Module |
| Parameter | Value |
|---|---|
| Technical UL/Output Power, Heavy-Duty Use (UL) | 150 Hp |
| Technical UL/Output Current, Heavy-Duty Use (UL) | 180 A |
Frame size R11, rated for 240 A light-overload use (200 Hp) and 180 A heavy-duty (150 Hp) on 480 V UL supply. Frequency range covers 47.5 to 63 Hz, so it handles 50 Hz and 60 Hz mains without derating.
Mounts as a module — R11 frame is a panel-mount form factor, not a standalone cabinet. Intended for integration into a drive lineup or control panel with proper gland-plate clearance for 480 V power cabling. WEEE category 4 (large equipment over 50 cm) applies for end-of-life disposal compliance.
Frame size R11. This determines the physical footprint, mounting hole pattern, and bus-bar connections for the drive module.
