IP68 and water resistance for washdown

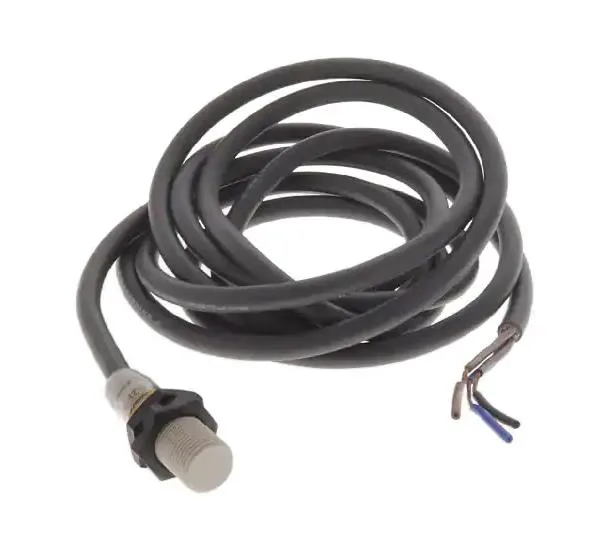

The Omron E2F-X2E2 inductive proximity sensor carries an IP68 enclosure rating and is explicitly listed as water resistant — meaning it can survive hose-down cleaning and temporary submersion in demanding environments like food processing, packaging, or pressure washing stations. The polyarylate resin body and sealed prewired 2 m cable eliminate condensation paths common in M12 cylindrical housings. Rated for 10-30 VDC supply with a maximum load current of 200 mA from the NPN output. The NC (normally closed) output circuit contact form keeps the sensor conducting in the absent-target state, which is useful for fail-safe detection on conveyor stops or clamp sensors where a loss of power should signal an alarm.
Output logic — NC vs. the NO sibling
The closest functional second-source to the E2F-X2E2 is the E2F-X2E1. Both sensors share identical mechanical dimensions (M12 threaded, 38 mm overall height, shielded, 2 mm sensing distance), the same electrical ratings (10-30 VDC, 200 mA, NPN), and the same prewired 2 m cable. The single difference that governs fit: the X2E2 is normally closed (NC), the X2E1 is normally open (NO). A panel originally wired around the NO variant cannot accept the X2E2 as a drop-in without rewiring the sensor input or adjusting the PLC ladder logic. If the existing design expects a closed circuit when the target is absent, the X2E2 matches; if it expects an open, choose the X2E1. No other wiring change is required — same 3-wire NPN sink configuration.
Active production, RFQ-only sourcing
Compliance documentation covers CCC, CE, CSA, and cURus approvals, plus NEMA enclosure ratings 1, 3, 4, 6, 12, 13 — covering indoor and outdoor use with protection against dirt, rain, and hose-directed water.
Mounting and connection notes
M12 threaded barrel, shielded for flush mount in metal. 2 mm sensing distance for ferrous targets with prewired 2 m cable, 3-wire NPN NC; verify 10-30 VDC orientation. Operating temperature range -13 to 158 °F. IP68 rated for continuous submersion.
