The Omron E3ZM-B86T-C is a compact retro-reflective photoelectric sensor with a PNP output rated for 12 to 24 VDC. Sensing distance is 0.5 m using a red LED, and the L-ON/D-ON operation is selectable via a switch. Mounts in a stainless steel rectangular body with an M8 4-pin connector.

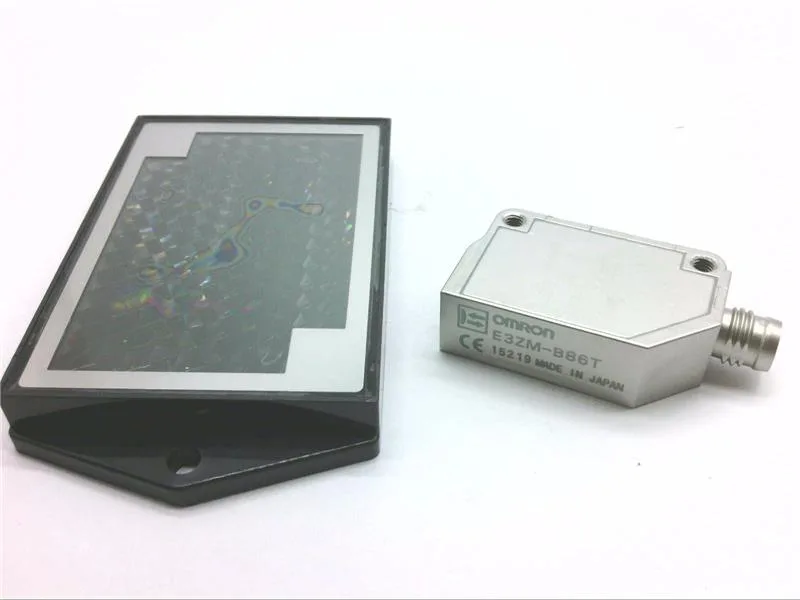

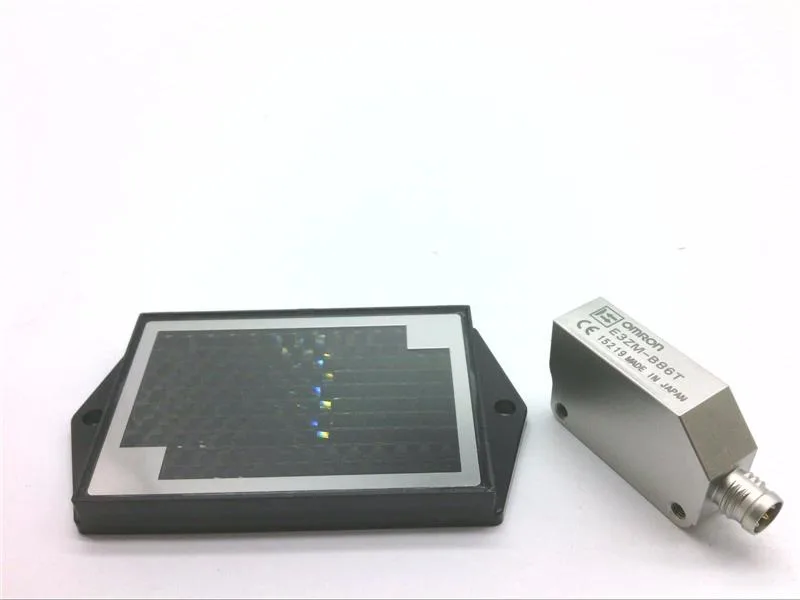

Omron E3ZM-B86T-C Retro-reflective Photoelectric Sensor, PNP
MPNE3ZM-B86T-C
Omron E3ZM-B86T-C | Retro-reflective | PNP | 0.5 m | M8 4-pin | Stainless Steel Housing | L-ON/D-ON Selectable.
$299.76Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Sensing
| Parameter | Value |
|---|---|
| Sensing method | Retro-reflective |
| Light source | Red LED |
Electrical
| Parameter | Value |
|---|---|
| Supply voltage | 12 to 24 VDC |
Connection
| Parameter | Value |
|---|---|
| Connection | M8 4-pin connector |
Other specifications
| Parameter | Value |
|---|---|
| Output | PNP |
| Body type | Rectangular - Compact |
| Operation | L-ON/D-ON selectable |
| Housing material | Stainless Steel |
| Product life cycle | Active |
| Max sensing distance | 0.5 m |
Product details
Frequently asked questions
What is the output type?
PNP.
What is the body type?
Rectangular - Compact.
Will E3ZM-B86T-C drop into a panel specified around E3ZM-CT87B?
No. The E3ZM-CT87B is through-beam with separate emitter/receiver, while the E3ZM-B86T-C is retro-reflective with a reflector. Wiring and supply voltage are the same, but the sensing configuration differs.
MPN
E3ZM-B86T-C
