Schneider Electric A9C52263 — Contactors

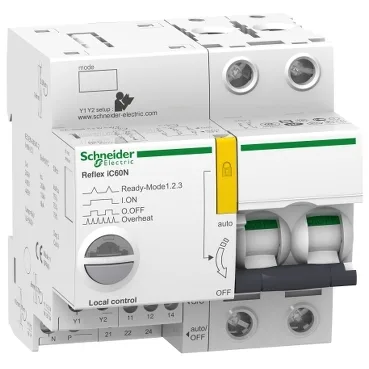

Schneider Electric A9C52263 Reflex iC60N 63A 2P C-curve MCB

MPNA9C52263
Obsolete

Schneider Electric Acti9 Reflex iC60N, integrated control circuit breaker, 63 A, 2P, curve C, 20 kA breaking capacity at 230 V AC.

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

A9C52263 — Identification
ParameterValue
Product / component typeIntegrated control circuit breaker
Series / rangeActi9
A9C52263 — Contacts & Poles
ParameterValue
Pole configuration2P
A9C52263 — Environmental
ParameterValue
IP degree of protectionIP20 conforming to IEC 60529
A9C52263 — Mechanical
ParameterValue
Width81 mm
Height84 mm
Depth77 mm

Product details

The control circuit accepts multiple voltages: 230 V AC, 24 V AC, 48 V AC, 24 V DC, or 48 V DC, selectable by the control signal type (impulse or maintained). This means a single part number covers both pulse-trip and continuous-command schemes without stocking separate coils.

Breaking capacity is 20 kA Icu at 220–240 V AC and 10 kA Icu at 380–415 V AC, both per EN/IEC 60947-2. At 230 V the 20 kA headroom covers higher-fault locations near the service entrance.

Fixed mounting on 35 mm DIN rail. The 2-pole footprint occupies 9 module pitches (81 mm width). IP20 finger-safe terminals per IEC 60529. Local signalling includes a flashing LED for device ready, overheat, and tripped states, plus a red LED for fault and green for device ON — useful for panel walk-down diagnostics without a separate indicator bank.

Frequently asked questions

What are the key ratings for the A9C52263?

Rated current 63 A, curve C, 2-pole. Breaking capacity 20 kA Icu at 230 V AC, 10 kA Icu at 400 V AC. Control circuit accepts 230 V AC, 24 V AC, 48 V AC, 24 V DC, or 48 V DC. Electrical durability 50,000 cycles at AC-1.

What compliance documentation is available for the A9C52263?

The part carries EN/IEC 60947-2 certification for breaking capacity and IEC 60529 for IP20 protection. Pollution degree 3 rated. Specific RoHS/REACH declarations are available from the manufacturer upon request.

What is the physical size of the A9C52263?

Depth 77 mm, width 81 mm (9 module pitches), height 84 mm. Mounts on 35 mm DIN rail.

MPN
A9C52263
