Schneider Electric A9F53404
MPNA9F53404
Obsolete

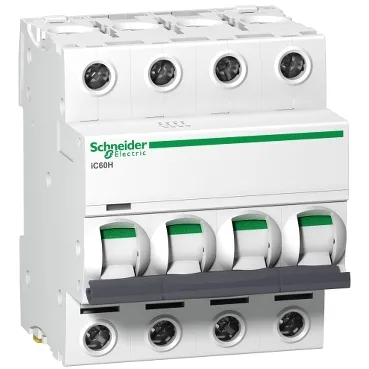

Acti9 iC60H 4P 4A B Miniature Circuit breaker
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Product name | Disbo iC60 |
| Product range | Acti9 |
| Product/component type | Miniature circuit-breaker |
Ratings
| Parameter | Value |
|---|---|
| Rated current (In) | 4 A |
| Poles configuration | 4P |
| Number of protected poles | 4 |
| Breaking capacity | 70 kA Icu at 12...133 V AC 50/60 Hz conforming to EN/IEC 60947-2 70 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2 70 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2 50 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2 15 kA Icu at < 250 V DC conforming to EN/IEC 60947-2 10000 A Icn at 415 V AC 50/60 Hz conforming to EN/IEC 60898-1 |
| Rated service breaking capacity (Ics) | 70 kA 100 % conforming to EN/IEC 60947-2 - 12...133 V AC 50/60 Hz 70 kA 100 % conforming to EN/IEC 60947-2 - 220...240 V AC 50/60 Hz 70 kA 100 % conforming to EN/IEC 60947-2 - 380...415 V AC 50/60 Hz 50 kA 100 % conforming to EN/IEC 60947-2 - 440 V AC 50/60 Hz 15 kA 100 % conforming to EN/IEC 60947-2 - < 250 V DC |
| Rated operational voltage (Ue) | 12...133 V AC 50/60 Hz 220...240 V AC 50/60 Hz 380...415 V AC 50/60 Hz 440 V AC 50/60 Hz < 250 V DC |
| Rated insulation voltage (Ui) | 500 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
| Rated impulse withstand voltage (Uimp) | 6 kV conforming to EN/IEC 60947-2 |
| Network type (AC/DC) | AC/DC |
| Network frequency | 50/60 Hz |
| Utilisation category | Category A conforming to EN/IEC 60947-2 |
Protection
| Parameter | Value |
|---|---|
| Curve code | B |
| Trip unit technology | Thermal-magnetic |
| Magnetic tripping limit | 4 x In +/- 20 % |
| Earth-leakage protection | Separate block |
| Limitation class | 3 conforming to EN/IEC 60898-1 |
| Electrical durability (cycles) | 10000 cycles |
| Mechanical durability (cycles) | 20000 cycles |
Mechanical
| Parameter | Value |
|---|---|
| Mounting support | Rail |
| Mounting mode | Clip-on |
| Control type | Toggle |
| Terminal connection type | Single terminal (top or bottom) 1...25 mm² rigid Single terminal (top or bottom) 1...16 mm² flexible |
| Terminal tightening torque | 2 N.m top or bottom |
| Wire stripping length | 14 mm for top or bottom connection |
| Contact position indicator | Yes |
| Local signalling/indication | Trip indicator |
| Width | 72 mm |
| Height | 85 mm |
| Depth | 78.5 mm |
| Number of 9 mm pitches | 8 |
Environmental
| Parameter | Value |
|---|---|
| Operating ambient temperature | -35...70 °C |
| Storage ambient temperature | -40...85 °C |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Pollution degree | 3 conforming to EN/IEC 60947-2 |
| Relative humidity | 95 % at 55 °C |
| Tropicalisation class | 2 conforming to IEC 60068-1 |
Approvals
| Parameter | Value |
|---|---|
| Standards | EN/IEC 60898-1 EN/IEC 60947-2 |
MPN
A9F53404
