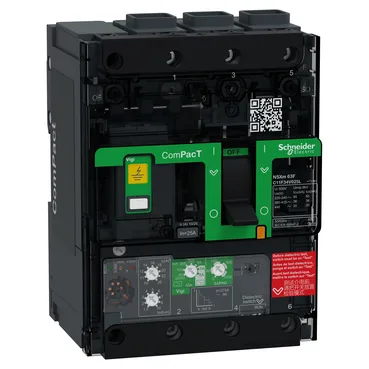

The Schneider Electric C11F34V025L is a ComPacT NSXm 3-pole moulded-case circuit breaker with a MicroLogic 4.1 electronic trip unit, rated 25 A at 40 °C and carrying a 36 kA breaking capacity at 415 V AC — F performance level. It is an earth-leakage circuit breaker with integrated earth-leakage protection, configurable for sensitivities from 30 mA to 5 A for both class A and class AC residual currents.
Category A utilisation means it is not intended for current-limiting coordination with downstream breakers in a fully selective scheme — treat it as the main or branch breaker where full selectivity is not the primary design goal. The EN/IEC 60947-2 standard it complies with covers the mechanical and electrical endurance, dielectric, and temperature-rise requirements for industrial application.
The 9-module pitch at 108 mm wide, 144 mm high, 80 mm deep fits standard enclosure cutouts. The 35 mm connection pitch with spreaders (27 mm without) matches common busbar and cable-lug spacing. IP40 front face with IK07 impact resistance is fine for dry indoor panels; not rated for washdown environments.
