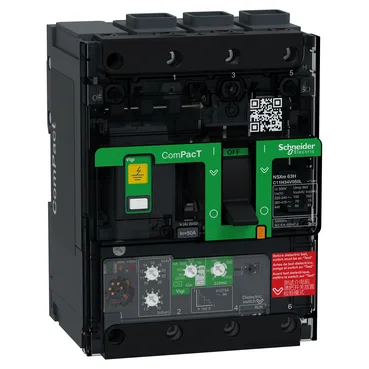

Schneider Electric C11H34V050L — Residual Current Breakers (RCCB/RCBO)

Schneider Electric C11H34V050L ComPacT NSXm, 50 A, 70 kA 415

MPNC11H34V050L
Active

Schneider Electric ComPacT NSXm, C11H34V050L, earth leakage circuit breaker, 3P, 50 A, MicroLogic 4.1 electronic trip unit, H 70 kA 415 V AC, EN/IEC 60947-2.

$793.85Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

C11H34V050L — Residual Current Protection
ParameterValue
Earth-leakage sensitivity (IΔn)30 mA for class A 100 mA for class A 300 mA for class A 500 mA for class A 1 A for class A 30 mA for class AC 100 mA for class AC 300 mA for class AC 500 mA for class AC 1 A for class AC 3 A for class AC 5 A for class AC
Earth-leakage protection class / typeClass A Class AC
Trip unit technologyElectronic
Local signalling / indicationFlag (green) for presence of auxiliary contacts
C11H34V050L — Electrical Ratings
ParameterValue
Rated current (In)50 A at 40 °C
Rated operational voltage (Ue)440 V AC 50/60 Hz
Poles description3P
Network typeAC
Network frequency50/60 Hz
Rated insulation voltage (Ui)500 V AC 50/60 Hz
Rated impulse withstand voltage (Uimp)8 kV
Overvoltage categoryIV
Electrical durability20000 cycles at 440 V In/2 10000 cycles at 440 V In
Mechanical durability (operating cycles)20000 cycles
C11H34V050L — Identification
ParameterValue
Product nameComPacT NSXm
Product / component typeEarth leakage circuit breaker
Product range / familyComPacT
Device short nameNSXm 63H
C11H34V050L — Mechanical
ParameterValue
Mounting supportBackplate
Mounting positionHorizontal and vertical Flat on the back
Control typeToggle
Width in 9 mm modules9 module
C11H34V050L — Environmental
ParameterValue
Operating ambient temperature-25...70 °C
Storage ambient temperature-40...85 °C
IP degree of protectionIP40 conforming to IEC 60529
Pollution degree3 conforming to IEC 60664-1
Relative humidity0...95 %
Operating altitude2000 m without derating 5000 m with derating
C11H34V050L — Approvals
ParameterValue
StandardsEN/IEC 60947-2

Product details

The Schneider Electric C11H34V050L is a ComPacT NSXm earth leakage circuit breaker, 3-pole, rated 50 A at 40 °C with a MicroLogic 4.1 electronic trip unit.

Push the ambient higher and you derate — the electronic trip unit compensates, but the frame and terminal limits still apply. The MicroLogic 4.1 is an electronic trip unit with integrated earth-leakage protection, adjustable sensitivity from 30 mA up to 5 A for class AC and 30 mA to 1 A for class A. That means you can set it to catch ground faults on a motor feeder or a lighting circuit without adding a separate RCD block. The 70 kA figure is the Icu (ultimate short-circuit breaking capacity) per EN/IEC 60947-2, Category A. That standard also governs the overvoltage category IV rating, meaning it's rated for installation at the origin of the installation, not just downstream sub-distribution.

The 9-module pitch (9 x 9 mm = 81 mm) plus the 108 mm width and 144 mm height fits standard distribution board cutouts. Connection is front-facing on both sides, with Everlink terminals accepting 2.5 to 95 mm² rigid or stranded aluminium/copper on the line side and 2.5 to 70 mm² fine-stranded copper on the load side. The connection pitch is 35 mm with spreaders, 27 mm without — that matters when you're laying out busbars or cable lugs in a tight enclosure. That's typical for an industrial panel environment.

Frequently asked questions

What is the interrupting capacity of C11H34V050L?

The C11H34V050L carries an H performance level, meaning 70 kA at 415 V AC. That is the ultimate short-circuit breaking capacity per EN/IEC 60947-2.

What earth-leakage sensitivities does the MicroLogic 4.1 trip unit support?

The integrated earth-leakage protection supports adjustable sensitivity: for class A from 30 mA to 1 A; for class AC from 30 mA to 5 A.

Where can I buy C11H34V050L and get current pricing?

The C11H34V050L is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — submit an RFQ for a firm price and lead time.

What standards does C11H34V050L comply with?

The breaker is certified to EN/IEC 60947-2, with overvoltage category IV and pollution degree 3 per IEC 60664-1. The IP40 front face and IK07 impact protection also conform to IEC 60529 and IEC 62262 respectively.
