Schneider Electric C11H44V025L — Residual Current Breakers (RCCB/RCBO)

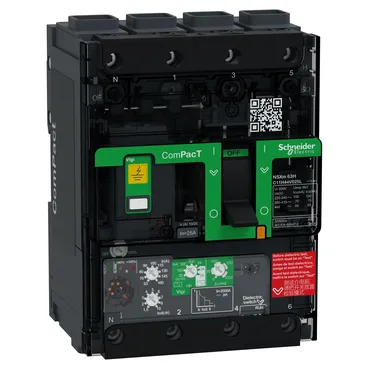

C11H44V025L ComPacT NSXm MCCB, 25 A, 4P, 70 kA

MPNC11H44V025L
Active

Schneider Electric ComPacT NSXm, 25 A, 4P, MicroLogic 4.1 electronic trip unit, 70 kA at 415 V AC, integrated earth-leakage, C11H44V025L.

$853.85Ref. price · indicative, final on quote
Schneider Electric C11H44V025L datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

C11H44V025L — Residual Current Protection
ParameterValue
Earth-leakage sensitivity (IΔn)30 mA for class A 100 mA for class A 300 mA for class A 500 mA for class A 1 A for class A 30 mA for class AC 100 mA for class AC 300 mA for class AC 500 mA for class AC 1 A for class AC 3 A for class AC 5 A for class AC
Earth-leakage protection class / typeClass A Class AC
Trip unit technologyElectronic
Local signalling / indicationFlag (green) for presence of auxiliary contacts
C11H44V025L — Electrical Ratings
ParameterValue
Rated current (In)25 A at 40 °C
Rated operational voltage (Ue)440 V AC 50/60 Hz
Poles description4P
Neutral pole positionLeft
Network typeAC
Network frequency50/60 Hz
Rated insulation voltage (Ui)500 V AC 50/60 Hz
Rated impulse withstand voltage (Uimp)8 kV
Overvoltage categoryIV
Electrical durability20000 cycles at 440 V In/2 10000 cycles at 440 V In
Mechanical durability (operating cycles)20000 cycles
C11H44V025L — Identification
ParameterValue
Product nameComPacT NSXm
Product / component typeEarth leakage circuit breaker
Product range / familyComPacT
Device short nameNSXm 63H
C11H44V025L — Mechanical
ParameterValue
Mounting supportBackplate
Mounting positionHorizontal and vertical Flat on the back
Control typeToggle
Width in 9 mm modules12 module
C11H44V025L — Environmental
ParameterValue
Operating ambient temperature-25...70 °C
Storage ambient temperature-40...85 °C
IP degree of protectionIP40 conforming to IEC 60529
Pollution degree3 conforming to IEC 60664-1
Relative humidity0...95 %
Operating altitude2000 m without derating 5000 m with derating
C11H44V025L — Approvals
ParameterValue
StandardsEN/IEC 60947-2

Product details

The C11H44V025L is a Schneider Electric ComPacT NSXm moulded-case circuit breaker, 4-pole, rated 25 A at 40 °C with a MicroLogic 4.1 electronic trip unit.

Integrated earth-leakage and trip-unit detail

Earth-leakage protection is integrated into the breaker, with selectable sensitivity from 30 mA to 5 A for both class A and class AC residual currents. The breaker is utilisation category A, meaning it is not intended for frequent switching of motor starts but for distribution-circuit protection where fault interruption is the primary duty.

Mounting and integration notes

Mounts on a backplate in horizontal or vertical orientation. The 9 mm pitch footprint occupies 12 modules — 108 mm wide, 144 mm high, 80 mm deep. Front-facing connections top and bottom accept Everlink lugs for copper or aluminium conductors up to 95 mm². IP40 enclosure protection, IK07 impact rating.

Selectivity and coordination context

The neutral is on the left; auxiliary contact presence is signalled by a green flag on the front.

Frequently asked questions

What is the breaking capacity of C11H44V025L?

The C11H44V025L has a breaking capacity of 70 kA at 415 V AC (performance level H), certified to EN/IEC 60947-2.

What earth-leakage protection does C11H44V025L offer?

Earth-leakage protection is integrated, with selectable sensitivity from 30 mA to 5 A for both class A and class AC residual currents.

Where can I buy C11H44V025L and how is it quoted?

The C11H44V025L is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time.
