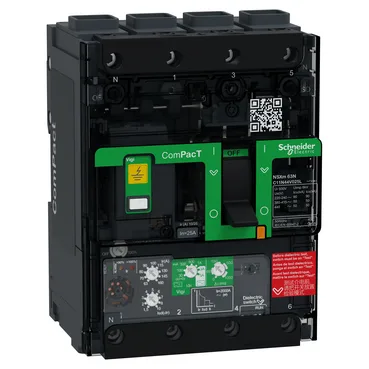

Schneider Electric C11N44V025L — Residual Current Breakers (RCCB/RCBO)

Schneider Electric C11N44V025L ComPacT NSXm MCCB, 25 A, 50 k

MPNC11N44V025L
Active

Schneider Electric ComPacT NSXm, 4P MCCB, 25 A at 40 °C, 50 kA at 415 V AC, electronic trip unit MicroLogic 4.1, integrated earth-leakage protection, grey (RAL 7016).

$793.84 – $835.65Ref. price · indicative, final on quote
Schneider Electric C11N44V025L datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

C11N44V025L — Residual Current Protection
ParameterValue
Earth-leakage sensitivity (IΔn)30 mA for class A 100 mA for class A 300 mA for class A 500 mA for class A 1 A for class A 30 mA for class AC 100 mA for class AC 300 mA for class AC 500 mA for class AC 1 A for class AC 3 A for class AC 5 A for class AC
Earth-leakage protection class / typeClass A Class AC
Trip unit technologyElectronic
Local signalling / indicationFlag (green) for presence of auxiliary contacts
C11N44V025L — Electrical Ratings
ParameterValue
Rated current (In)25 A at 40 °C
Rated operational voltage (Ue)440 V AC 50/60 Hz
Poles description4P
Neutral pole positionLeft
Network typeAC
Network frequency50/60 Hz
Rated insulation voltage (Ui)500 V AC 50/60 Hz
Rated impulse withstand voltage (Uimp)8 kV
Overvoltage categoryIV
Electrical durability20000 cycles at 440 V In/2 10000 cycles at 440 V In
Mechanical durability (operating cycles)20000 cycles
C11N44V025L — Identification
ParameterValue
Product nameComPacT NSXm
Product / component typeEarth leakage circuit breaker
Product range / familyComPacT
Device short nameNSXm 63N
C11N44V025L — Mechanical
ParameterValue
Mounting supportBackplate
Mounting positionHorizontal and vertical Flat on the back
Control typeToggle
Width in 9 mm modules12 module
C11N44V025L — Environmental
ParameterValue
Operating ambient temperature-25...70 °C
Storage ambient temperature-40...85 °C
IP degree of protectionIP40 conforming to IEC 60529
Pollution degree3 conforming to IEC 60664-1
Relative humidity0...95 %
Operating altitude2000 m without derating 5000 m with derating
C11N44V025L — Approvals
ParameterValue
StandardsEN/IEC 60947-2

Product details

The Schneider Electric C11N44V025L is a ComPacT NSXm 63N frame moulded-case circuit breaker, 4-pole, with a MicroLogic 4.1 electronic trip unit rated 25 A at 40 °C. The integrated earth-leakage protection covers Class A and Class AC sensitivities from 30 mA to 5 A, so it handles both personnel protection and equipment ground-fault detection in one device.

The front-facing Everlink lugs accept 2.5–70 mm² fine-stranded copper or 2.5–95 mm² rigid copper/aluminium, which covers most panel feed and distribution wiring without adapters. At 80 mm deep and 108 mm wide, it occupies 12 module pitches on a 9 mm grid — a compact footprint for a 4-pole 50 kA breaker with integrated earth leakage.

IP40 front panel, IK07 impact resistance. Electrical endurance is 20,000 cycles at rated current, 10,000 at 2× In; mechanical endurance 20,000 cycles. The electronic trip unit includes a 20-minute thermal memory that retains the thermal state before and after a trip, preventing nuisance re-closure on a hot conductor.

Frequently asked questions

Where can I buy C11N44V025L and how do I get a price?

This part is sourced to order against an RFQ through independent distribution. Submit a request for quote to confirm availability and current pricing.

What is the breaking capacity of C11N44V025L?

It is rated 50 kA at 415 V AC (performance level N) per EN/IEC 60947-2.

What earth-leakage protection does C11N44V025L include?

Integrated earth-leakage protection with selectable sensitivity: Class A at 30 mA, 100 mA, 300 mA, 500 mA, 1 A; Class AC at 30 mA, 100 mA, 300 mA, 500 mA, 1 A, 3 A, 5 A.
