Schneider Electric C12H44V160B — Residual Current Breakers (RCCB/RCBO)

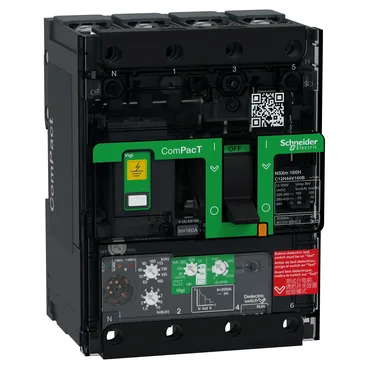

Schneider Electric C12H44V160B ComPacT NSXm 160A MCCB, 70kA

MPNC12H44V160B
Active

Schneider Electric ComPacT NSXm, MCCB, 160 A at 40 °C, 4P, 70 kA 415 V AC, MicroLogic 4.1 electronic trip unit, EN/IEC 60947-2, Grey (RAL 7016).

Schneider Electric C12H44V160B datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

C12H44V160B — Residual Current Protection
ParameterValue
Earth-leakage sensitivity (IΔn)30 mA for class A 100 mA for class A 300 mA for class A 500 mA for class A 1 A for class A 30 mA for class AC 100 mA for class AC 300 mA for class AC 500 mA for class AC 1 A for class AC 3 A for class AC 5 A for class AC
Earth-leakage protection class / typeClass A Class AC
Trip unit technologyElectronic
Local signalling / indicationFlag (green) for presence of auxiliary contacts
C12H44V160B — Electrical Ratings
ParameterValue
Rated current (In)160 A at 40 °C
Rated operational voltage (Ue)440 V AC 50/60 Hz
Poles description4P
Neutral pole positionLeft
Network typeAC
Network frequency50/60 Hz
Rated insulation voltage (Ui)500 V AC 50/60 Hz
Rated impulse withstand voltage (Uimp)8 kV
Overvoltage categoryIV
Electrical durability20000 cycles at 440 V In/2 10000 cycles at 440 V In
Mechanical durability (operating cycles)20000 cycles
C12H44V160B — Identification
ParameterValue
Product nameComPacT NSXm
Product / component typeEarth leakage circuit breaker
Product range / familyComPacT
Device short nameNSXm 160H
C12H44V160B — Mechanical
ParameterValue
Mounting supportBackplate
Mounting positionHorizontal and vertical Flat on the back
Control typeToggle
Width in 9 mm modules12 module
C12H44V160B — Environmental
ParameterValue
Operating ambient temperature-25...70 °C
Storage ambient temperature-40...85 °C
IP degree of protectionIP40 conforming to IEC 60529
Pollution degree3 conforming to IEC 60664-1
Relative humidity0...95 %
Operating altitude2000 m without derating 5000 m with derating
C12H44V160B — Approvals
ParameterValue
StandardsEN/IEC 60947-2

Product details

ComPacT NSXm 160H — MCCB with integrated earth-leakage

The Schneider Electric C12H44V160B is a ComPacT NSXm 160H moulded-case circuit breaker rated 160 A at 40 °C, 4 poles, with a MicroLogic 4.1 electronic trip unit. The integrated earth-leakage protection — selectable from 30 mA to 5 A, class A or AC — means this single device covers both overcurrent and ground-fault protection, saving a panel row and a separate RCCB.

Overvoltage category IV means it can be installed at the service entrance, not just downstream.

Front connections top and bottom accept compression lugs or busbars. 12-module pitch (9 mm each) means it occupies 108 mm width in a panel; depth is 80 mm, height 144 mm. Neutral is on the left. The 35 mm connection pitch with spreaders (27 mm without) matches standard busbar drilling patterns. Local signalling flag (green) shows presence of auxiliary contacts — useful during commissioning to confirm the aux contact block is seated.

That matters for motor or transformer feeders where repeated inrush can accumulate heat. Electrical durability is 20,000 cycles at rated current and 440 V, halved to 10,000 cycles at In/2 — fine for a panel main or feeder, not for a switching duty contactor.
