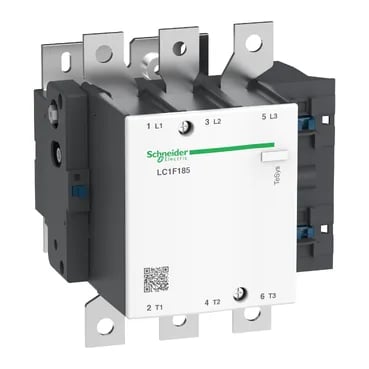

The LC1F185D7 is a 3-pole TeSys F contactor from Schneider Electric, rated for switching motor loads up to 185 A in AC-3 duty (≤440 V) — that's the current it can make and break under the inductive load of a squirrel-cage motor during starting and running. At 380-400 V AC, that translates to 90 kW motor power; at 415 V it handles 100 kW, and at 500 V it still delivers 110 kW. The 42 V AC control coil (40-400 Hz) pulls 1070 VA inrush and holds at 9.9 VA, with a dropout range of 0.2-0.55 Uc — useful to know if you're integrating into a control transformer circuit with voltage sag. The contactor also carries AC-1 (resistive load) and AC-4 (plugging/inching) ratings, with a rated breaking capacity of 1480 A per IEC 60947-4-1. The 0.33 mOhm average impedance at 275 A Ith means heat dissipation runs 8-9.8 W total, or 12 W per pole in AC-3 and 25 W per pole in AC-1 — factor that into your panel thermal budget.
This part is end-of-life hot (EOL hot) — Schneider has discontinued production and the last-time-buy window is closed or closing.
Mounts to a plate (not DIN rail), with dimensions 174 mm high x 168.5 mm wide x 181 mm deep. Power circuit connections accept bar (25 x 3 mm busbar), ring terminals up to 150 mm², or bolted connections. Control circuit uses screw clamp terminals accepting 1-4 mm² flexible or solid. Tightening torque: 18 N.m on power, 1.2 N.m on control. IP2X on the front face with shrouds per IEC 60529.
Designed to IEC 60947-1, IEC 60947-4-1, EN 60947-1, EN 60947-4-1, and JIS C8201-4-1. Rated insulation voltage 1000 V per IEC 60947-4-1, overvoltage category III. Protective treatment TH (tropicalized). Operating altitude 3000 m without derating, ambient temperature -5 to 55 °C operation, -60 to 80 °C storage.
