Schneider Electric LC1G115KUEN

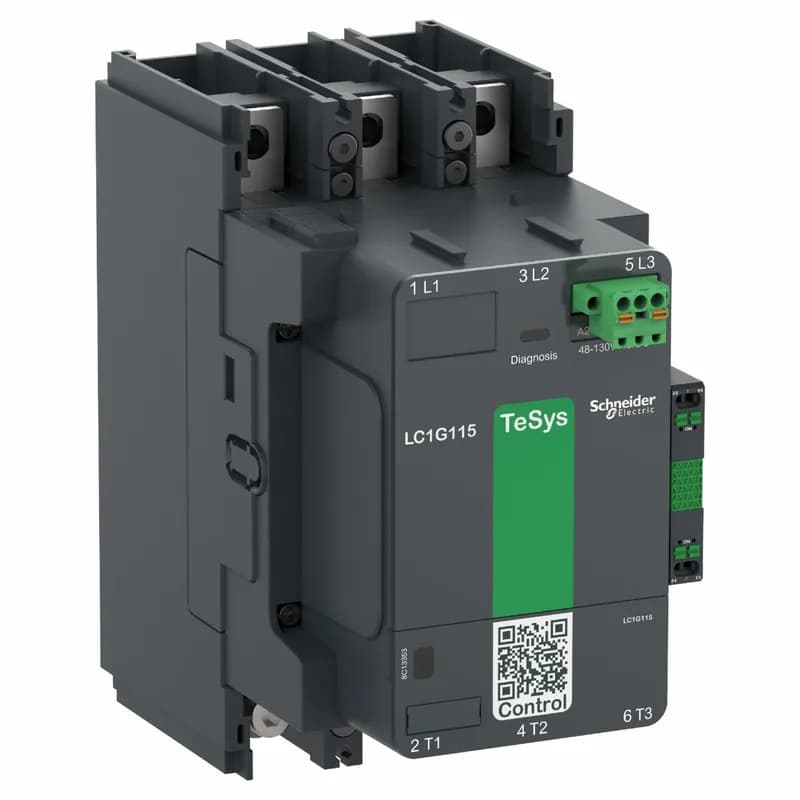

Schneider LC1G115KUEN TeSys Giga contactor, 3-pole, 250 A, 250 V coil

MPNLC1G115KUEN
Active

Schneider LC1G115KUEN Iec Contactors 66 Over Amp.

$833.51Ref. price · indicative, final on quote
Schneider Electric LC1G115KUEN datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

LC1G115KUEN key specifications
ParameterValue
Range of productTeSys Giga
Product or component typeContactor
Coil voltage100...250 V AC 50/60 Hz 100...250 V DC
Voltage1000 V
Control circuit voltage limitsOperational: 0.8 Uc Min...1.1 Uc Max (at Drop-out: 0.1 Uc Max...0.45 Uc Min (at <140 °F (60 °C))
[Ue] rated operational voltage<= 460 V DC
[Uimp] rated impulse withstand voltage8 kV
[Icw] rated short-time withstand current1.1 kA - 10 s 0.64 kA - 30 s 0.52 kA - 1 min 0.4 kA - 3 min 0.32 kA - 10 min
Breaking capacity1040 A at 440 V
[Ie] rated operational current250 A (at 115 A (at <140 °F (60 °C)) at <= 440 V AC-3
[Ith] conventional free air thermal current250 A (at 104 °F (40 °C))
Motor power30 kW at 230 V AC 50/60 Hz (AC-3e) 55 kW at 400 V AC 50/60 Hz (AC-3e) 55 kW at 415 V AC 50/60 Hz (AC-3e) 75 kW at 440 V AC 50/60 Hz (AC-3e) 75 kW at 500 V AC 50/60 Hz (AC-3e) 75 kW at 690 V AC 50/60 Hz (AC-3e) 30 kW at 230 V AC 50/60 Hz (AC-3) 55 kW at 400 V AC 50/60 Hz (AC-3) 55 kW at 415 V AC 50/60 Hz (AC-3) 75 kW at 440 V AC 50/60 Hz (AC-3) 75 kW at 500 V AC 50/60 Hz (AC-3) 75 kW at 690 V AC 50/60 Hz (AC-3) 30 kW at 230 V AC 50/60 Hz (AC-4) 55 kW at 400 V AC 50/60 Hz (AC-4) 55 kW at 415 V AC 50/60 Hz (AC-4) 65 kW at 440 V AC 50/60 Hz (AC-4) 65 kW at 500 V AC 50/60 Hz (AC-4) 75 kW at 690 V AC 50/60 Hz (AC-4)

All specifications

LC1G115KUEN additional specifications
ParameterValue
Inrush power in380 W
Maximum horse power rating30 hp at 200/208 V 60 Hz 40 hp at 230/240 V 60 Hz 75 hp at 460/480 V 60 Hz 100 hp at 575/600 V 60 Hz
Power dissipation per pole10 W AC-1 - Ith 250 A 3 W AC-3 - Ith 115 A
Inrush power in VA (50/60 hz, AC)540 VA
Hold-in power consumption in7.8 W
Poles description3P
Pole contact composition3 NO
Utilisation categoryAC-1 AC-3 AC-3e AC-4 AC-5a AC-5b AC-6a AC-6b AC-8a AC-8b DC-1 DC-3 DC-5
IP degree of protectionIP2X front face with shrouds IEC 60529 IP2X front face with shrouds VDE 0106
Mounting supportPlate
Connection pitch1.4 in (35 mm)
Connections - terminalsPower circuit: bar 2 - busbar cross section: 25 x 6 mm Power circuit: lugs-ring terminals 1 0.3 in² (185 mm²) Power circuit: bolted connection Control circuit: push-in 1 0.0003...0.004 in² (0.2...2.5 mm²) - cable stiffness: solid stranded without cable end Control circuit: push-in 1 0.0004...0.004 in² (0.25...2.5 mm²) - cable stiffness: flexible with cable end Control circuit: push-in 2 0.0008...0.002 in² (0.5...1.0 mm²) with cable end Control circuit: push-in 0.001...0.004 in² (0.75...2.5 mm²) - cable stiffness: solid stranded without cable end Control circuit: push-in 0.001...0.004 in² (0.75...2.5 mm²) - cable stiffness: flexible with cable end
ColorDark grey
Depth7.6 in (193 mm)
Width4.3 in (108 mm)
Height7.6 in (193 mm)
Mechanical durability8 Mcycles
StandardsEN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 JIS C8201-4-1 JIS C8201-5-1 IEC 60335-1:Clause 30.2 IEC 60335-2-40:Annex JJ UL 60335-1 UL 60335-2-40:Annex JJ
RangeTeSys
CategoryUS10I1222329
Operating time40...70 ms closing 15...50 ms opening
Coil technologyBuilt-in bidirectional peak limiting
Average impedance0.00018 Ohm
Device short nameLC1G
Tightening torque159.3 lbf.in (18 N.m)
Compatibility codeLC1G
Overvoltage categoryIII
Protective treatmentTH
Contactor applicationPower switching Motor control
Mechanical robustnessVibrations 5...300 Hz 2 gn contactor open Vibrations 5...300 Hz 4 gn contactor closed Shocks 10 gn 11 ms contactor open Shocks 15 gn 11 ms contactor closed
Associated fuse rating125 A aM at 125 A aM at 315 A gG at 300 A UL Type J at <= 600 V
Maximum operating rate600 cyc/h AC-3 600 cyc/h AC-3e 300 cyc/h AC-1 150 cyc/h AC-4
Safety reliability levelB10d = 400000 cycles contactor with nominal load EN/ISO 13849-1 B10d = 3000000 cycles contactor with mechanical load EN/ISO 13849-1
Irms rated making capacity1560 A at 440 V
Auxiliary contact composition1 NO + 1 NC
Ambient air temperature for storage-76...176 °F (-60...80 °C)
Ambient air temperature for operation-13...140 °F (-25...60 °C)
Permissible ambient air temperature around the device-40...158 °F (-40...70 °C) at Uc

Product details

Overview

The LC1G115KUEN is a 3-pole IEC contactor from the Schneider TeSys Giga range, rated for 250 A switching current on a 460 V supply. The coil pulls in at 250 V AC and uses built-in bidirectional peak limiting to suppress switching transients without external suppression modules. It carries 1 NO + 1 NC auxiliary contacts and is certified to EN/IEC 60947-4-1, UL 60947-4-1, and CSA C22.2 No 60947-4-1, covering global panel approvals.

Sizing and selection

The 250 A switching current and 1.04 kA breaking capacity place the LC1G115KUEN at the lower end of the TeSys Giga frame. For a BOM that originally specified the LC1G225EHEA (330 A switching, 2.05 kA breaking), the LC1G115KUEN will not drop in without rewiring — the terminal pitch is 35 mm on both, but the LC1G225EHEA draws 8.9 W holding power versus 12.4 W for the LC1G115KUEN, and the coil voltage differs. Verify the control circuit and load current before substituting.

The LC1G115KUEN is an active TeSys Giga catalog part. Lead time is quoted per RFQ; no end-of-life notice is published as of the latest Schneider lifecycle data.
