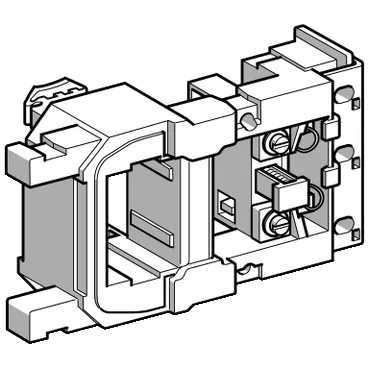

TeSys LX0FH020 Contactor Coil, 208 V AC/DC, Active

MPNLX0FH020
Active

Schneider Electric TeSys F contactor coil, LX0FH020, 208 V AC/DC, AC 50-400 Hz or DC control circuit, 1 Mcycles mechanical durability.

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

LX0FH020 — Identification
ParameterValue
Product typeContactor coil
Product rangeTeSys
Device short nameLX0FH
LX0FH020 — Electrical
ParameterValue
Control circuit voltage [Uc]208 V AC 50...400 Hz 208 V DC
Control circuit typeAC 50...400 Hz DC standard
Control circuit voltage limitsLatching: 0.85...1.1 Uc Unlatching: 0.85...1.1 Uc
Coil resistance (avg.)20.2 Ohm latching 68 °F (20 °C) 2654 Ohm unlatching 68 °F (20 °C)
LX0FH020 — Performance & Durability
ParameterValue
Operating time50...100 ms unlatching 45...50 ms latching
Max. operating rate120 cyc/h 104 °F (40 °C)
Mechanical durability1 Mcycles

Product details

The LX0FH020 is a replacement coil for TeSys F contactors, rated for 208 V AC (50-400 Hz) or 208 V DC control circuits. It's the part you swap when the old coil opens up or the insulation goes brittle on a hot motor starter.

Rated 1 million mechanical cycles — that's the life before the armature or spring wears out, not the electrical switching life which depends on the contactor's load. At 104 °F (40 °C) the maximum operating rate is 120 cycles per hour, so it'll keep up with a cycling conveyor or pump start-stop but not a high-speed pick-and-place. Coil resistance runs 20.2 Ω latching and 2654 Ω unlatching at 68 °F (20 °C). That wide spread tells you it's a two-winding coil — one winding pulls in, the other holds, which cuts holding power and heat.

Frequently asked questions

What control voltage does this coil work with?

208 V AC across 50-400 Hz, or 208 V DC. The control circuit accepts either, but verify your supply frequency — 50 Hz and 60 Hz are both in range, but 400 Hz aircraft or shipboard systems are also covered.

MPN
LX0FH020
