Inrush hits 136 W (170 VA) at 20 °C, then settles to a hold-in of 5.1 W (7.5 VA). The 2.2 W heat dissipation is what you budget for enclosure thermal rise — that's the steady-state number, not the inrush spike. Mechanical durability is rated at 8 Mcycles, so this coil outlasts most contactor main poles in cyclic service.
Schneider Electric LX1D83BNE TeSys Deca Contactor Coil, 24-6
MPNLX1D83BNE
Active

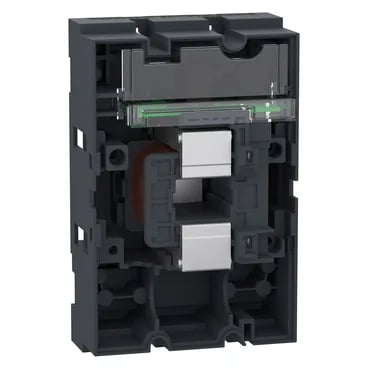

Schneider Electric TeSys Deca, contactor coil module LX1D83BNE, wide-range AC/DC 24-60V, for LC1D115A-150A/3P contactors.
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Product type | Contactor coil |
| Product range | TeSys Deca |
| Coil type | Wide range |
| Parameter | Value |
|---|---|
| Control circuit voltage [Uc] | 24...60 V AC/DC |
| Control circuit type | AC/DC |
| Control circuit voltage limits | 0.8 Uc Min...1.1 Uc Max (at <60 °C) |
| Parameter | Value |
|---|---|
| Inrush power (VA) | 170 VA (at 20 °C) |
| Inrush power (W) | 136 W (at 20 °C) |
| Hold-in power (VA) | 7.5 VA (at 20 °C) |
| Hold-in power (W) | 5.1 W at 20 °C |
| Heat dissipation | 2.2 W |
| Parameter | Value |
|---|---|
| Mechanical durability | 8 Mcycles |
| Parameter | Value |
|---|---|
| Compatible poles | 3P |
Product details
Frequently asked questions
What contactors does this coil fit?
It is designed for TeSys Deca LC1D115A through LC1D150A three-pole contactors. The 24-60 V AC/DC wide-range coil replaces the need to select separate AC and DC coil variants for that frame size.
What is the coil type and voltage range?
Wide-range AC/DC coil accepting 24 to 60 V AC or DC control voltage. Voltage limits are 0.8 x Uc minimum to 1.1 x Uc maximum at temperatures below 60 °C.
