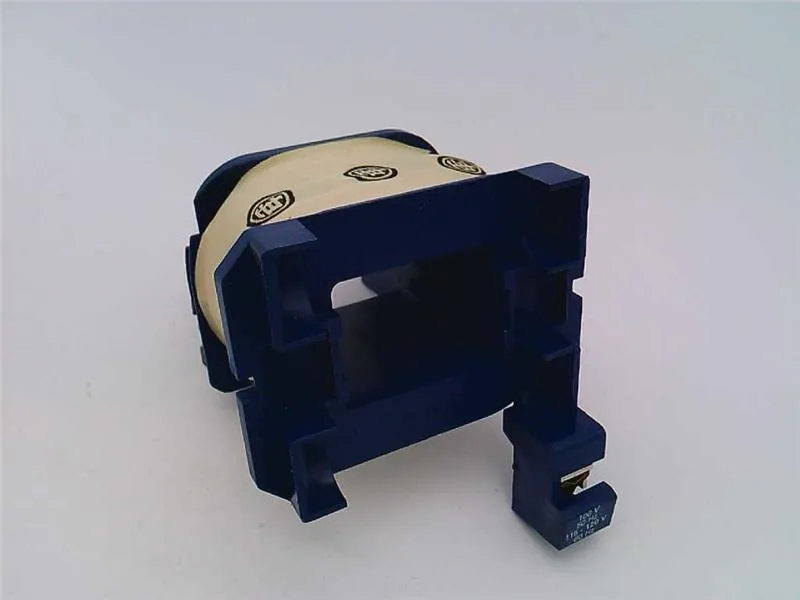

The LX1LD127 is a replacement coil for the TeSys Integral series of motor starters and contactors from Schneider Electric. It is a 127 V AC 50 Hz control coil, meaning it is designed to be energized by a 127 V AC control circuit at 50 Hz to pull in the contactor's armature. The coil draws 350 to 400 VA inrush at 50 Hz with a power factor of 0.55 to pull in, then settles to 20 to 30 VA hold-in power at 50 Hz with a power factor of 0.28. The DC resistance measures 9.8 Ohm at 68 °F (20 °C), and the inductance of the closed circuit is 2.13 H. Operational voltage range is 0.85 to 1.1 times the rated control voltage (Uc) at up to 131 °F (55 °C); dropout occurs between 0.25 and 0.7 Uc. This means the coil will hold in reliably down to about 108 V AC and will drop out somewhere between 32 and 89 V AC, depending on temperature.
Schneider LX1LD127 TeSys coil, 127 V AC 50 Hz, obsolete
MPNLX1LD127
Active
Schneider Electric TeSys Integral replacement coil, LX1LD127, 127 V AC 50 Hz, 9.8 Ohm, 350-400 VA inrush.
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Product type | Coil |
| Product range | TeSys |
| Device short name | LX1 |
| Parameter | Value |
|---|---|
| Control circuit voltage [Uc] | 127 V AC 50 Hz |
| Control circuit type | AC 50 Hz |
| Control circuit voltage limits | Operational: 0.85...1.1 Uc (at Drop-out: 0.25...0.7 Uc (at <131 °F (55 °C)) |
| Coil resistance (avg.) | 9.8 Ohm 68 °F (20 °C) |
| Coil inductance (closed circuit) | 2.13 H |
| Parameter | Value |
|---|---|
| Inrush power (VA) | 350...400 VA 50 Hz cos phi 0.55 |
| Hold-in power (VA) | 20...30 VA 50 Hz cos phi 0.28 |
Product details
Frequently asked questions
What replaces the LX1LD127?
Schneider Electric does not list a direct official successor for this order code. For a replacement, you would need to identify the specific TeSys Integral contactor or starter it came from and select a current-production coil from the TeSys range with the same voltage and frequency rating. We can assist with that cross-reference on an RFQ.
What are the key electrical ratings of the LX1LD127?
It is a 127 V AC 50 Hz control coil with 9.8 Ohm DC resistance, 350-400 VA inrush, and 20-30 VA hold-in power. The operational voltage range is 0.85 to 1.1 Uc, and dropout is 0.25 to 0.7 Uc.
MPN
LX1LD127
