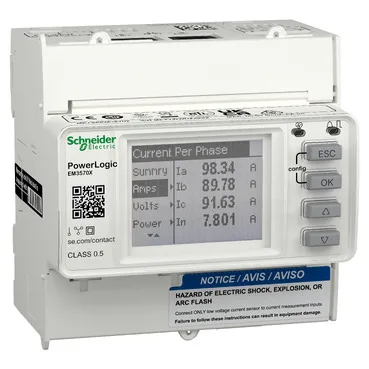

Schneider Electric METSEEM3570X
MPNMETSEEM3570X
Active
DIN rail meter, PowerLogic EM3570, Ethernet, LVDC, LVCT input
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Product / component type | Energy meter |
| Product range | PowerLogic |
| Device short name | EM3570X |
| Poles description | 3P + N 2P + N 1P + N 3P |
| Device application | Partial meter Sub billing Multi-tariff |
Electrical & Protection
| Parameter | Value |
|---|---|
| Rated operational voltage (Ue) | 12...36 V DC |
| Network frequency | 60 Hz +/- 10 % 50 Hz +/- 10 % |
Mounting & Connection
| Parameter | Value |
|---|---|
| Terminal connections / wire range | Current circuit screw terminals 0.009 in² (6 mm²) Voltage circuit screw terminals 0.002 in² (1.5 mm²) Input circuit screw terminals 0.009 in² (6 mm²) Supply circuit screw terminals 0.006 in² (4 mm²) Relay output screw terminals 0.002 in² (1.5 mm²) |
| Mounting support | DIN rail |
| Mounting mode | Clip-on |
| Width | 3.5 in (90 mm) |
| Height | 3.6 in (91.4 mm) |
| Depth | 2.8 in (70.6 mm) |
| Tightening torque (by circuit) | Current circuit: 7.08 lbf.in (0.8 N.m) Voltage circuit: 4.4 lbf.in (0.5 N.m) Input circuit: 4.4 lbf.in (0.5 N.m) Supply circuit: 7.08 lbf.in (0.8 N.m) Relay output: 7.08 lbf.in (0.8 N.m) |
Environmental
| Parameter | Value |
|---|---|
| Operating ambient temperature | -13...158 °F (-25...70 °C) |
| Storage ambient temperature | -40...185 °F (-40...85 °C) |
| IP degree of protection | IP20 meter: IP40 display: |
Approvals
| Parameter | Value |
|---|---|
| Conformity standards | IEC 61557-12 EN 61557-12 BS EN 61557-12 IEC 61326-1 EN 61326-1 BS EN 61326-1 IEC 61010-1 EN 61010-1 BS EN 61010-1 IEC 61010-2-30 EN 61010-2-30 BS EN 61010-2-30 UL 61010-1 UL 61010-2-30 UL 2808 CSA C22.2 No 61010-1-12 CSA C22.2 No 61010-2-30 |
MPN
METSEEM3570X
