Schneider Electric — Analog Input Modules

Schneider Electric Analog Input Modules — 3 part numbers with specifications and datasheets. Filter by key specs and request a quote on AO Ctrl.

Device short name

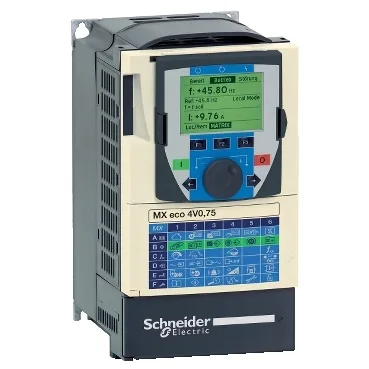

MX eco 4V11 · MX eco 4V18 · MX eco 4V4.0 · MX eco 4V7.5
Width
210 mm · 230 mm · 155 mm · 175 mm
Apparent power
19.2 kVA for 400 V3 phases / 11 kW 22 kVA for 460 V3 phases / 15 hp · 28 kVA for 400 V3 phases / 18.5 kW 33 kVA for 460 V3 phases / 25 hp · 7.3 kVA for 400 V3 phases / 4 kW 8.4 kVA for 460 V3 phases / 5 hp · 12.2 kVA for 400 V3 phases / 7.5 kW 14 kVA for 460 V3 phases / 10 hp
Continuous output current
27.7 A at 4 kHz, 400 V3 phases 27.7 A at 4 kHz, 460 V3 phases · 41 A at 4 kHz, 400 V3 phases 41 A at 4 kHz, 460 V3 phases · 10.5 A at 4 kHz, 400 V3 phases 10.5 A at 4 kHz, 460 V3 phases · 17.6 A at 4 kHz, 400 V3 phases 17.6 A at 4 kHz, 460 V3 phases
Height
295 mm · 400 mm · 230 mm · 105 mm
Line current
36.6 A for 400 V, 3 phases, 11 kW (without choke) 30 A for 480 V, 3 phases, 15 hp (without choke) · 46 A for 400 V, 3 phases, 18.5 kW (without choke) 38 A for 480 V, 3 phases, 25 hp (without choke) · 14.1 A for 400 V, 3 phases, 4 kW (without choke) 11.5 A for 480 V, 3 phases, 5 hp (without choke) · 27 A for 400 V, 3 phases, 7.5 kW (without choke) 22.2 A for 480 V, 3 phases, 10 hp (without choke)
Maximum transient current
33 A for 60 s 3 phases · 49 A for 60 s 3 phases · 12.6 A for 60 s 3 phases · 21 A for 60 s 3 phases
Motor power hp
15 hp 3 phases for 460 V · 25 hp 3 phases for 460 V · 5 hp 3 phases for 460 V · 10 hp 3 phases for 460 V
