Schneider Electric BMXE Series

6 variants · Schneider Electric

About the Schneider Electric BMXE Series

AO Ctrl is a China industrial automation distributor and independent sourcing agent for Schneider Electric BMXE Series components — the parts repair and maintenance teams source here when a machine is down or the line is no longer sold locally — with the physical condition of every unit stated up front. The Schneider Electric BMXE Series series groups 6 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Variants differ by main product or component type, operating temperature and temp operating max, so you can match the exact main product or component type your application requires using the selection guide below. All listed Schneider Electric BMXE Series part numbers are active and orderable.

Select a variant by

Main product or component type: Counter module · Encoder interface module · Frequency module · Master module · Multifunction input module
Operating temperature: -25...70 °C · 0...60 °C
Temp operating max: 60 °C · 70 °C
Temp operating min: -25 °C · 0 °C
Current: <= 30 mA at 24 V DC sensor · 30 mA at 24 V DC 130 mA at 3.3 V DC · 160 mA at 3.3 V DC · 200 mA at 3.3 V DC bus 40 mA at 24 V DC rack 80 mA at 24 V DC sensor
Channels: 2 · 3 SSI channel
Storage temperature: -40...70 °C · -40...85 °C
Temp storage max: 70 °C · 85 °C

Variant comparison

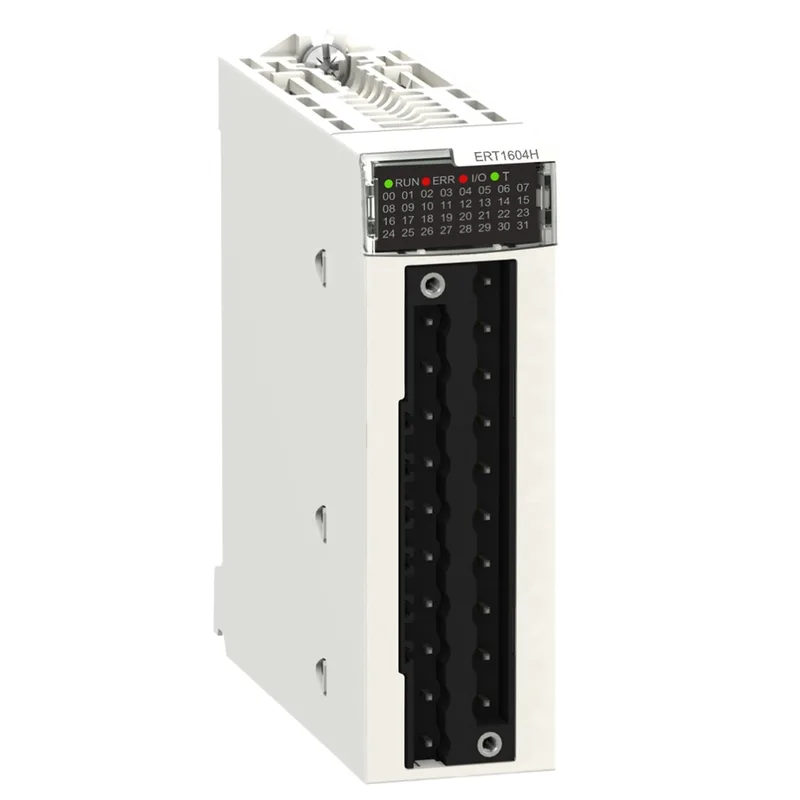

Parameter	BMXEAE0300	BMXEIA0100	BMXETM0200H	BMXERT1604T	BMXEHC0200	BMXERT1604H
Main product or component type	Encoder interface module	Master module	Frequency module	Multifunction input module	Counter module	Multifunction input module
Operating temperature	0...60 °C	0...60 °C	-25...70 °C	-25...70 °C	0...60 °C	-25...70 °C
Temp operating max	60 °C	60 °C	70 °C	70 °C	60 °C	70 °C
Temp operating min	0 °C	0 °C	-25 °C	-25 °C	0 °C	-25 °C
Current	—	160 mA at 3.3 V DC	<= 30 mA at 24 V DC sensor	30 mA at 24 V DC 130 mA at 3.3 V DC	200 mA at 3.3 V DC bus 40 mA at 24 V DC rack 80 mA at 24 V DC sensor	30 mA at 24 V DC 130 mA at 3.3 V DC
Channels	3 SSI channel	—	2	—	2	—
Storage temperature	—	-40...70 °C	—	-40...85 °C	—	-40...85 °C
Temp storage max	—	70 °C	—	85 °C	—	85 °C

Request a quote on any Schneider Electric BMXE Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
