Schneider Electric LC1E Series

298 variants · Schneider Electric

Schneider Electric LC1E Series — Industrial Component from schneider

Schneider Electric LC1E Series by schneider includes 298 variants for industrial automation, panel building, and machine control applications in factory automation, process industries, and building infrastructure.

Applications

Control Panel Integration: Standardized DIN rail or panel-mount components for motor control centers, power distribution boards, and PLC I/O systems.
Machine Building: Motor starting, protection, and auxiliary control in automated production lines, packaging machinery, and material handling equipment.
Building Services: HVAC control, pumping stations, lighting control, and backup power systems in commercial and industrial buildings.

Selection

Match the rated current, voltage, breaking/switching capacity, number of poles, and control voltage to the application requirements. The complete manufacturer order code encodes these parameters — providing the full part number ensures accurate pricing and availability confirmation.

Availability

Standard configurations are typically in distributor inventory. Custom configurations or special accessories may require additional lead time. Contact authorized distributors for volume pricing and project quotations.

About the Schneider Electric LC1E Series

The Schneider Electric LC1E Series series groups 298 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common IP rating of IP2X, main product or component type of Contactor and permissible ambient air temperature around the device of -20...70 °C at Uc -60...80 °C storage -5...55 °C operation. Variants differ by application, control circuit type and depth, so you can match the exact application your application requires using the selection guide below. The range mixes active and legacy part numbers, so you can source both current Schneider Electric LC1E Series variants and discontinued ones from a single page.

Select a variant by

Application: Resistive load · Resistive load, Motor control
Control circuit type: AC at 50 Hz · AC at 50/60 Hz · AC at 60 Hz
Depth: 80 mm · 181 mm
Electrical life cycles: 500000 cycles AC-3 200000 cycles AC-1 · 1400000 cycles AC-3 150000 cycles AC-1
Height: 74 mm · 174 mm
Mechanical life cycles: 5000000 cycles · 10000000 cycles
Operating time: 12...22 ms on closing 4...19 ms on opening · 20...35 ms on closing 7...15 ms on opening
Utilization category: AC-1 · AC-3 AC-3e AC-1

Shared specifications

IP rating: IP2X
Main product or component type: Contactor
Permissible ambient air temperature around the device: -20...70 °C at Uc -60...80 °C storage -5...55 °C operation
Pollution degree: 3
Temp operating max: 80 °C
Temp operating min: -60 °C

Variant comparison

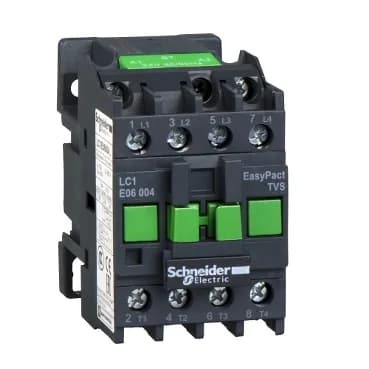

Parameter	LC1E200B6	LC1E200B5	LC1E06004B7	LC1E06004E7	LC1E06004F7	LC1E06004M7
Application	Resistive load, Motor control	Resistive load, Motor control	Resistive load	Resistive load	Resistive load	Resistive load
Control circuit type	AC at 60 Hz	AC at 50 Hz	AC at 50/60 Hz	AC at 50/60 Hz	AC at 50/60 Hz	AC at 50/60 Hz
Depth	181 mm	181 mm	80 mm	80 mm	80 mm	80 mm
Electrical life cycles	500000 cycles AC-3 200000 cycles AC-1	500000 cycles AC-3 200000 cycles AC-1	1400000 cycles AC-3 150000 cycles AC-1	1400000 cycles AC-3 150000 cycles AC-1	1400000 cycles AC-3 150000 cycles AC-1	1400000 cycles AC-3 150000 cycles AC-1
Height	174 mm	174 mm	74 mm	74 mm	74 mm	74 mm
Mechanical life cycles	5000000 cycles	5000000 cycles	10000000 cycles	10000000 cycles	10000000 cycles	10000000 cycles
Operating time	20...35 ms on closing 7...15 ms on opening	20...35 ms on closing 7...15 ms on opening	12...22 ms on closing 4...19 ms on opening	12...22 ms on closing 4...19 ms on opening	12...22 ms on closing 4...19 ms on opening	12...22 ms on closing 4...19 ms on opening
Utilization category	AC-3 AC-3e AC-1	AC-3 AC-3e AC-1	AC-1	AC-1	AC-1	AC-1

Request a quote on any Schneider Electric LC1E Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
