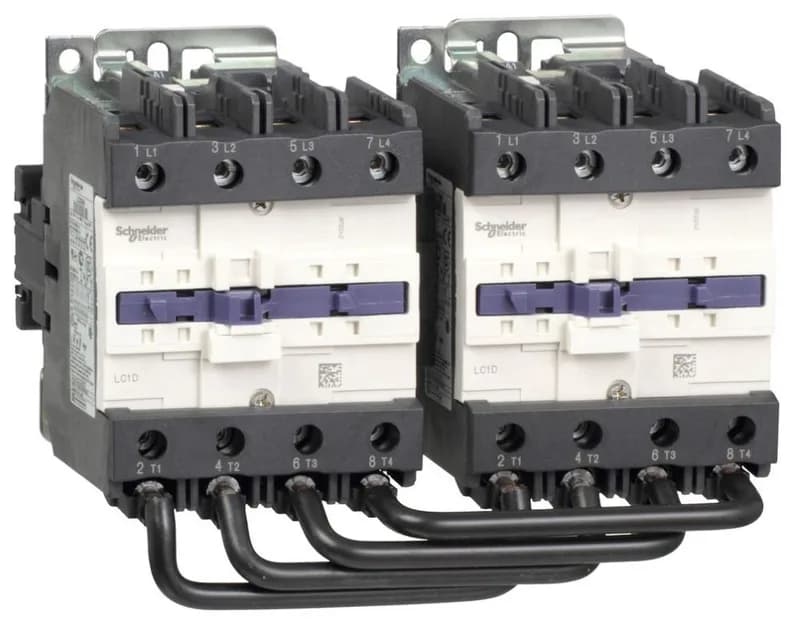

LC2D80004M5
Schneider Electric
IP20-40...140 °F (-40...60 °C) 140...158 °F (60...70 °C) with deratingResistive load
Lead time on requestGet quote
TeSys D Reversing Contactor
637 variants · Schneider Electric
About the TeSys D Reversing Contactor
The Schneider Electric TeSys D Reversing Contactor series groups 637 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common fire behavior of V1 conforming to UL 94, IP rating of IP20 and operating temperature of -40...140 °F (-40...60 °C) 140...158 °F (60...70 °C) with derating. Variants differ by application, depth and height, so you can match the exact application your application requires using the selection guide below. The range mixes active and legacy part numbers, so you can source both current TeSys D Reversing Contactor variants and discontinued ones from a single page.
Select a variant by
- Application
- Resistive load · Resistive load Motor control · Resistive load, Motor control
- Depth
- 3.9 in (98 mm) · 4.7 in (120 mm)
- Height
- 3.6 in (91 mm) · 4.8 in (122 mm)
- Main product or component type
- Changeover contactor · Reversing contactor
- Width
- 3.5 in (90 mm) · 4.7 in (119 mm)
- Utilization category
- AC-1 AC-3 AC-3e · AC-1 AC-3 AC-3e AC-4 · AC-3 AC-1 AC-3e
Shared specifications
- Fire behavior
- V1 conforming to UL 94
- IP rating
- IP20
- Operating temperature
- -40...140 °F (-40...60 °C) 140...158 °F (60...70 °C) with derating
- Pollution degree
- 3
- Storage temperature
- -76...176 °F (-60...80 °C)
- Temp operating max
- 60 °C
- Temp operating min
- -40 °C
- Temp storage max
- 80 °C
- Temp storage min
- -60 °C
Variant comparison
| Parameter | LC2D50AL7 | LC2D50AFD | LC2D50AFE7 | LC2D50AM7 | LC2D40AFE7 | LC2D40AP7 |
|---|---|---|---|---|---|---|
| Application | Resistive load, Motor control | Resistive load, Motor control | Resistive load Motor control | Resistive load Motor control | Resistive load, Motor control | Resistive load, Motor control |
| Depth | 4.7 in (120 mm) | 4.7 in (120 mm) | 4.7 in (120 mm) | 4.7 in (120 mm) | 4.7 in (120 mm) | 4.7 in (120 mm) |
| Height | 4.8 in (122 mm) | 4.8 in (122 mm) | 4.8 in (122 mm) | 4.8 in (122 mm) | 4.8 in (122 mm) | 4.8 in (122 mm) |
| Main product or component type | Reversing contactor | Reversing contactor | Reversing contactor | Reversing contactor | Reversing contactor | Reversing contactor |
| Width | 4.7 in (119 mm) | 4.7 in (119 mm) | 4.7 in (119 mm) | 4.7 in (119 mm) | 4.7 in (119 mm) | 4.7 in (119 mm) |
| Utilization category | AC-1 AC-3 AC-3e | — | AC-3 AC-1 AC-3e | AC-3 AC-1 AC-3e | AC-1 AC-3 AC-3e | AC-1 AC-3 AC-3e |
Request a quote on any TeSys D Reversing Contactor part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
