6ES7532-5HD00-0AB0 - Siemens
MPN6ES7532-5HD00-0AB0
Active

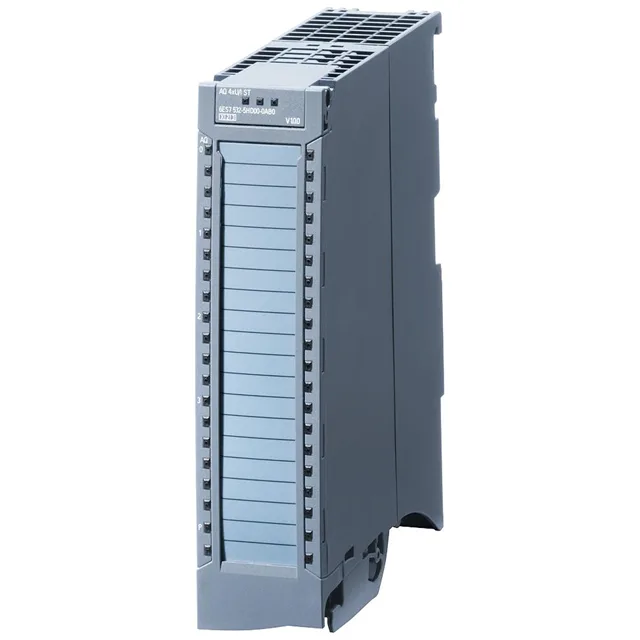

SIMATIC S7-1500, analog output module AQ 4xU/I ST, 16-bit resolution accuracy 0.3%. 4 channels in groups of 4, diagnostics; substitute value; the module supports the safety-oriented shutdown of load groups up to SIL2 according to EN IEC 62061:2021 and Category 2 / PL c according to EN ISO 13849-1:2015. delivery including infeed element, shielding bracket and shield terminal: front connector (screw terminals or push-in) to be ordered separately
$368.30Ref. price · indicative, final on quote
StockContact for availability
Lead timeCall for availability wk
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Outputs
| Parameter | Value |
|---|---|
| Number of analog outputs | 4 |
| Output range: -10 V to +10 V | Yes |
| Output range: 0 to 10 V | Yes |
| Output range: 1 V to 5 V | Yes |
| Output range: 0 to 20 mA | Yes |
| Output range: 4 to 20 mA | Yes |
| Output range: -20 mA to +20 mA | Yes |
| Load resistance, current outputs, max. | 750 Ω |
| Load resistance, voltage outputs, min. | 1 kΩ; 0.5 kOhm at 1 to 5 V |
| Current output, no-load voltage, max. | 22 V |
| Voltage output, short-circuit current, max. | 24 mA |
| Voltage output, short-circuit protection | Yes |
| Inductive load, current outputs, max. | 10 mH |
| Capacitive load, voltage outputs, max. | 1 µF |
| Cable length, shielded, max. | 800 m; for current, 200 m for voltage |
Performance
| Parameter | Value |
|---|---|
| Resolution (incl. sign, with overrange), max. | 16 bit |
| Error, voltage output (rel. to output range) | 0.2 % |
| Error, current output (rel. to output range) | 0.2 % |
| Temperature error (rel. to output range) | 0.002 %/K |
| Conversion time (per channel) | 0.5 ms |
| Settling time, resistive load | 1.5 ms |
| Settling time, inductive load | 2.5 ms |
| Settling time, capacitive load | 2.5 ms |
Power
| Parameter | Value |
|---|---|
| Rated value (DC) | 24 V |
| Permissible range, upper limit (DC) | 28.8 V |
| Permissible range, lower limit (DC) | 19.2 V |
| Power loss (typ.) | 4 W |
| Reverse polarity protection | Yes |
Diagnostics
| Parameter | Value |
|---|---|
| Supply voltage monitoring | Yes |
| Diagnostics function | Yes |
| Diagnostic interrupt/alarm | Yes |
| Wire-break detection (current outputs) | Yes; Only for output type "current" |
| Short-circuit detection (voltage outputs) | Yes; Only for output type "voltage" |
Isolation
| Parameter | Value |
|---|---|
| Isolation: channels to backplane bus | Yes |
| Isolation: between channels | No |
| Isolation: channels to load voltage L+ | Yes |
| Isolation test voltage | 707 V DC (type test) |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature, horizontal mounting, max. | 60 °C |
| Operating temperature, horizontal mounting, min. | -30 °C; From FS06 |
| Operating temperature, vertical mounting, max. | 40 °C |
| Operating temperature, vertical mounting, min. | -30 °C; From FS06 |
| Installation altitude, max. | 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual |
Mechanical
| Parameter | Value |
|---|---|
| Width | 35 mm |
| Height | 147 mm |
| Depth | 129 mm |
