Schneider Electric BMXX Series

27 variants · Schneider Electric

About the Schneider Electric BMXX Series

The Schneider Electric BMXX Series series groups 27 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common IP rating of IP20. Variants differ by operating temperature, temp operating max and temp operating min, so you can match the exact operating temperature your application requires using the selection guide below.

Select a variant by

Operating temperature: -25...70 °C · 0...60 °C
Temp operating max: 60 °C · 70 °C
Temp operating min: -25 °C · 0 °C

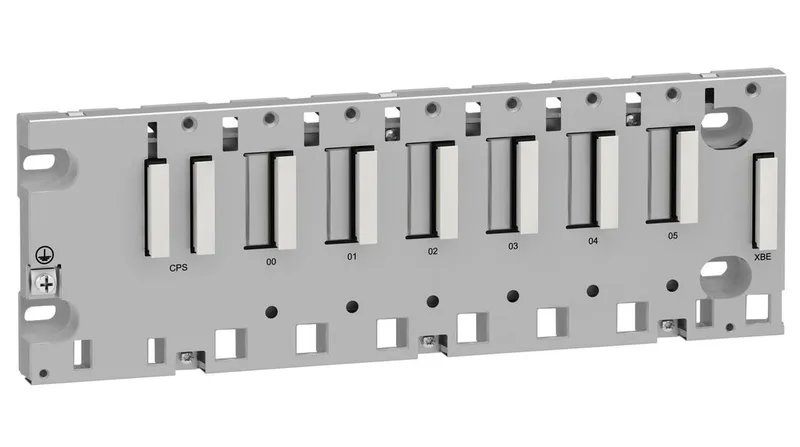

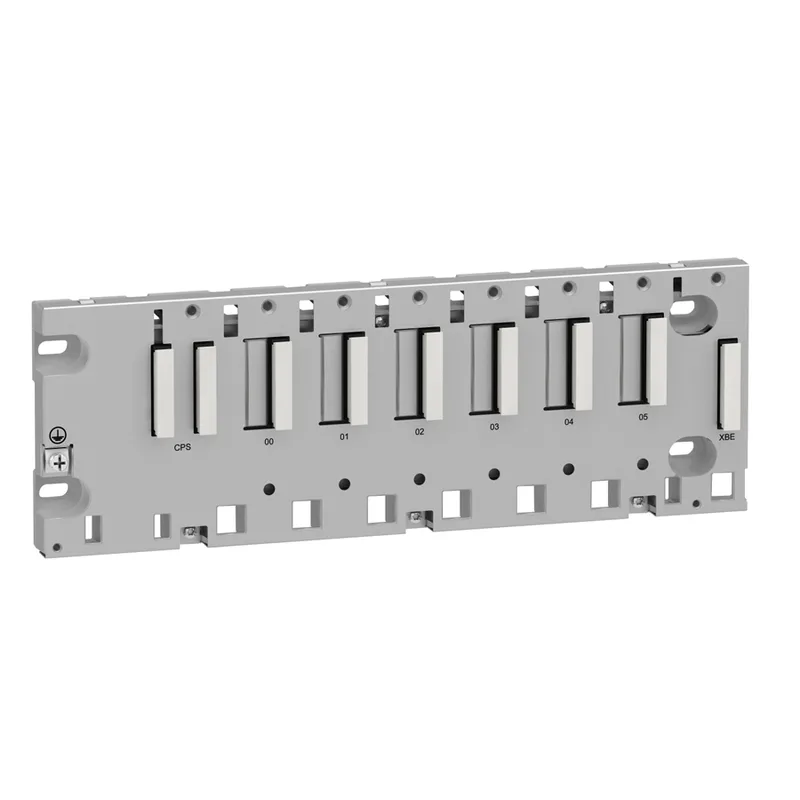

Main product or component type: Backplane · Ruggedized backplane
Width: 242.4 mm · 307.6 mm · 372.8 mm · 503.2 mm

Shared specifications

IP rating: IP20

Variant comparison

Parameter	BMXXBE1000H	BMXXBP1200H	BMXXBP0800H	BMXXBP0600H	BMXXBE1000	BMXXBP1200
Operating temperature	-25...70 °C	-25...70 °C	-25...70 °C	-25...70 °C	0...60 °C	0...60 °C
Temp operating max	70 °C	70 °C	70 °C	70 °C	60 °C	60 °C
Temp operating min	-25 °C	-25 °C	-25 °C	-25 °C	0 °C	0 °C
Main product or component type	—	Ruggedized backplane	Ruggedized backplane	Ruggedized backplane	—	Backplane
Width	—	503.2 mm	372.8 mm	307.6 mm	—	503.2 mm

Request a quote on any Schneider Electric BMXX Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
