Schneider Electric BMXN Series

10 variants · Schneider Electric

About the Schneider Electric BMXN Series

AO Ctrl is an independent, China-based distributor and sourcing agent for Schneider Electric BMXN Series components — the parts repair and maintenance teams source here when a machine is down or the line is no longer sold locally — with the physical condition of every unit stated up front. The Schneider Electric BMXN Series series groups 10 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common IP rating of IP20. Variants differ by current, main product or component type and operating temperature, so you can match the exact current your application requires using the selection guide below. The range mixes active and legacy part numbers, so you can source both current Schneider Electric BMXN Series variants and discontinued ones from a single page.

Select a variant by

Current: 80 mA at 24 V DC · 90 mA 24 V DC · 95 mA 24 V DC · 140 mA typical 200 mA maximum · 555 mA 3.3 V DC
Main product or component type: Communication module · Ethernet TCP/IP network module · Fibre optic repeater · Serial links module
Operating temperature: -25...70 °C · -13...158 °F (-25...70 °C) · 0...60 °C · 32...140 °F (0...60 °C)
Temp operating max: 60 °C · 70 °C
Temp operating min: -25 °C · 0 °C
Optic fiber type: Multi mode · Single mode
Sensing distance: 0...2000 m · 0...15000 m

Shared specifications

IP rating: IP20

Variant comparison

Parameter	BMXNRP0201	BMXNOM0200	BMXNOM0200H	BMXNOC0401	BMXNOE0100	BMXNOR0200H
Current	140 mA typical 200 mA maximum	80 mA at 24 V DC	80 mA at 24 V DC	555 mA 3.3 V DC	90 mA 24 V DC	95 mA 24 V DC

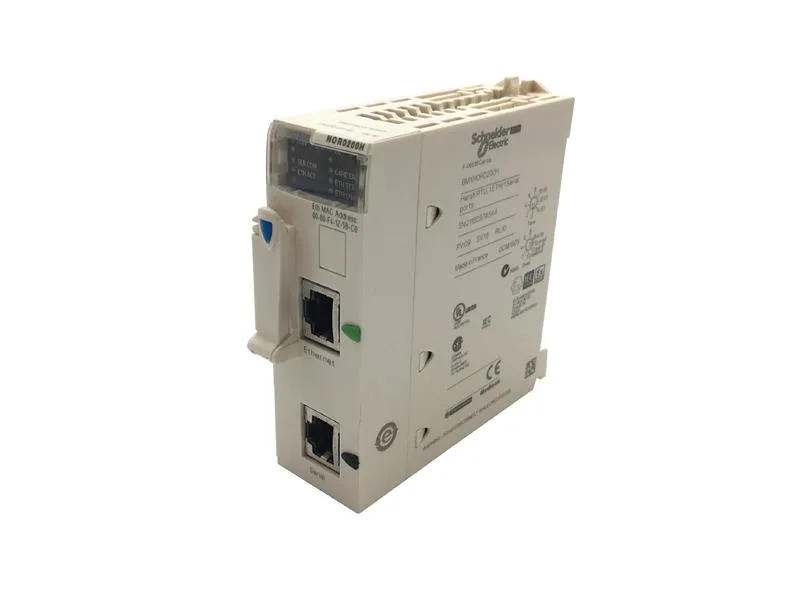

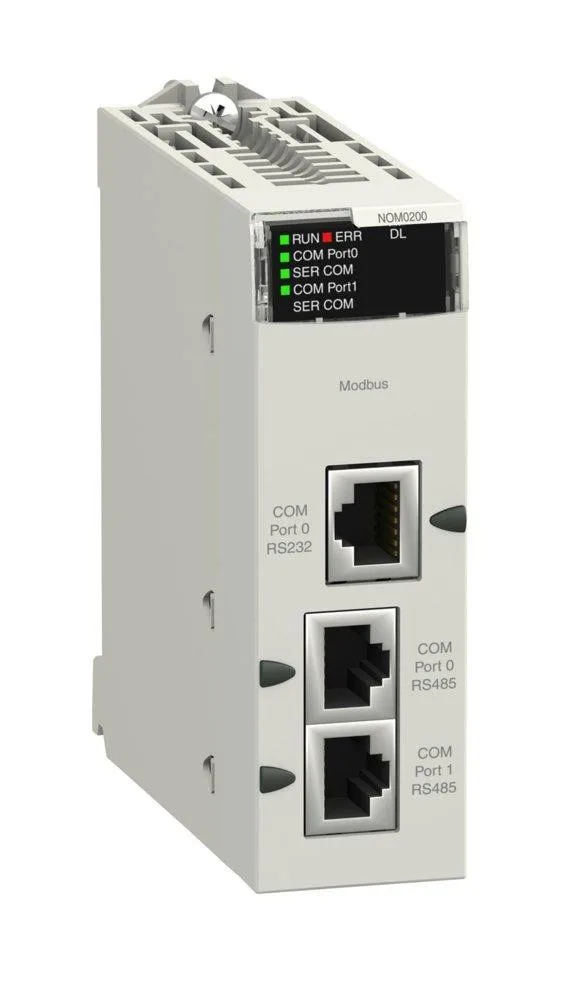

Main product or component type	Fibre optic repeater	Serial links module	Serial links module	Ethernet TCP/IP network module	Ethernet TCP/IP network module	Communication module
Operating temperature	0...60 °C	0...60 °C	-25...70 °C	32...140 °F (0...60 °C)	32...140 °F (0...60 °C)	-13...158 °F (-25...70 °C)
Temp operating max	60 °C	60 °C	70 °C	60 °C	60 °C	70 °C
Temp operating min	0 °C	0 °C	-25 °C	0 °C	0 °C	-25 °C
Optic fiber type	Single mode	—	—	—	—	—
Sensing distance	0...15000 m	—	—	—	—	—

Request a quote on any Schneider Electric BMXN Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
