Siemens SIPLUS LOGO! 6AG1052-1MD00-2BA6 logic module, 12/24 V DC, 8 inputs (4 analog 0-10 V), 4 relay outputs, conformal coating, -25 to 70 °C, IP20, discontinued.
| Parameter | Value |
|---|---|
| Digital inputs | 8; Of which 4 can be used in analog mode (0 to 10 V) |
| Digital outputs | 4; Relays |
| Parameter | Value |
|---|---|
| Permissible range, lower limit (DC) | 10.8 V; 11 V @ >55 °C |
| Permissible range, upper limit (DC) | 28.8 V; 27.5 V @ >55 °C |
| Short-circuit protection | No; external fusing necessary |
| Parameter | Value |
|---|---|
| Installation altitude, max. | 5 000 m |
| Temperature, min. | -25 °C; = Tmin |
| Temperature, max. | 70 °C; = Tmax; 55 °C @ UL/cUL use |
| Ambient temperature vs. altitude/pressure derating | Tmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) // Tmin ... (Tmax - 10 K) at 795 hPa ... 658 hPa (+2 000 m ... +3 500 m) // Tmin ... (Tmax -20 K) at 658 hPa ... 540 hPa (+3 500 m ... +5 000 m) |
| Parameter | Value |
|---|---|
| Width | 72 mm |
| Height | 90 mm |
| Depth | 55 mm |

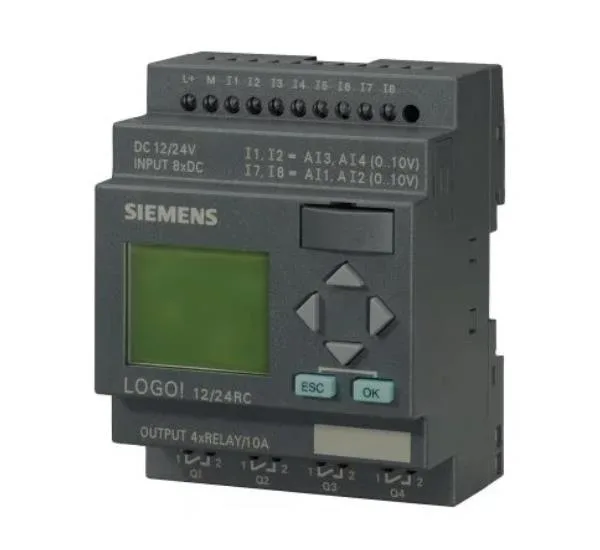

The 6AG1052-1MD00-2BA6 is a Siemens SIPLUS LOGO! 12/24RC logic module with conformal coating, rated for an extended temperature range of -25 to 70 °C and altitudes up to 5000 m, carrying 8 inputs (4 usable in analog 0 to 10 V mode) and 4 relay outputs. Siemens lists this part as discontinued; it is a ruggedized variant of the standard 6ED1052-1MD00-0BA6, now available only through surplus and broker channels.
