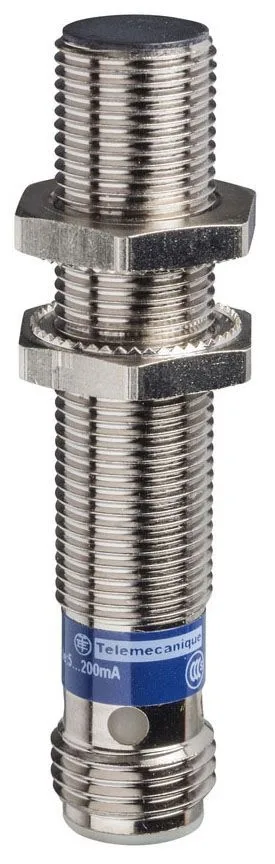

XS612B1PAM12
Schneider Electric
IP67 / IP69K48–120 V4
Ref. price$15.24
Lead time on requestGet quote

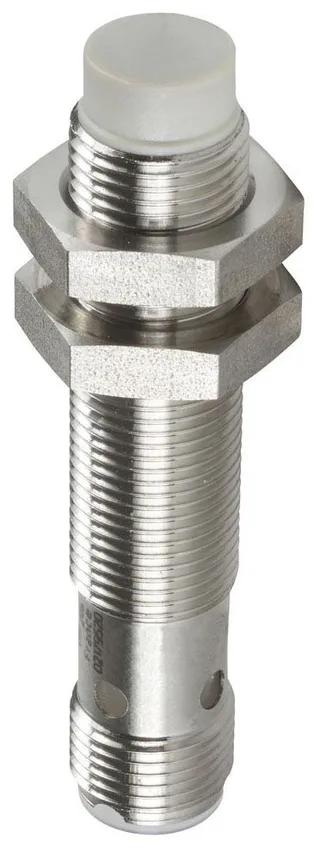

Schneider Electric XS612B Series
36 variants · Schneider Electric
About the Schneider Electric XS612B Series
The Schneider Electric XS612B Series series groups 36 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Variants differ by output circuit type, IP rating and sensor diameter, so you can match the exact output circuit type your application requires using the selection guide below.
Select a variant by
- Output circuit type
- AC/DC · AC/DC-Type · NPN · PNP
- IP rating
- IP67 / IP69K · IP68 / IP69K
- Sensor diameter
- 12 mm · 17 mm
- Supply voltage
- 24-240 V AC ; 24-240 V DC · Not Rated ; 12-24 V DC · Not Rated ; 12-48 V DC
- Pin count
- 3 · 4
Variant comparison
| Parameter | XS612B1MBL2 | XS612B1NAL2 | XS612B1PAM12 | XS612B2PAL01M12 | XS612B1MAU20 | XS612B1NAM12 |
|---|---|---|---|---|---|---|
| Output circuit type | AC/DC-Type | NPN | PNP | PNP | AC/DC-Type | NPN |
| IP rating | IP68 / IP69K | IP68 / IP69K | IP67 / IP69K | IP67 / IP69K | IP67 / IP69K | IP67 / IP69K |
| Sensor diameter | 12 mm | 12 mm | 12 mm | 12 mm | 12 mm | 12 mm |
| Supply voltage | 24-240 V AC ; 24-240 V DC | Not Rated ; 12-48 V DC | Not Rated ; 12-48 V DC | Not Rated ; 12-24 V DC | 24-240 V AC ; 24-240 V DC | Not Rated ; 12-48 V DC |
| Pin count | — | — | 4 | 4 | 3 | 4 |
Request a quote on any Schneider Electric XS612B Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
