Schneider Electric TM200CE24U

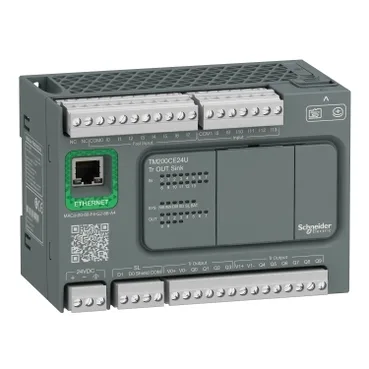

Schneider Electric TM200CE24U PLC, 24 I/O, Modbus TCP/IP

MPN TM200CE24U
Active

Schneider Electric Easy Modicon M200 PLC, TM200CE24U, 24 discrete I/O, 14 PID loops, 4 HSC at 100 kHz, Ethernet Modbus TCP/IP, 24 VDC.

$435.03 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

TM200CE24U specifications
ParameterValue
Main product or component typeLogic controller
IP ratingIP20
Response time1 ms turn-on, Q0...Q9 terminal(s) for output 1 ms turn-off, Q0...Q9 terminal(s) for output 5 µs turn-off, I0, I1, I6, I7 terminal(s) for high speed input 5 µs turn-on, I0, I1, I6, I7 terminal(s) for high speed input 100 µs turn-off, I2...I5 terminal(s) for fast input 35 µs turn-on, I2...I5 terminal(s) for fast input 100 µs turn-off, I8...I13 terminal(s) for regular input 35 µs turn-on, I8...I13 terminal(s) for regular input
Temp storage max70 °C
Temp storage min-25 °C
Temp operating max55 °C
Temp operating min0 °C
Storage temperature-25...70 °C
Pollution degree<= 2
Depth70 mm
Width130 mm
Height90 mm
Reset time1 s automatic reset
Backup time3 years at 25 °C (by interruption of power supply)
Input impedance3.3 kOhm for discrete input
Discrete output logicNegative logic (sink)
Operating temperature0...55 °C (horizontal installation)

Product details

24 I/O brick with embedded Ethernet

The TM200CE24U is a 24-point discrete I/O controller from the Easy Modicon M200 series, packing 14 inputs and 10 transistor-sink outputs in a 130 x 90 x 70 mm footprint that clips onto a standard TH35 DIN rail. It runs on 20.4–28.8 VDC and includes four high-speed counter inputs (100 kHz, 32-bit) configurable for quadrature, pulse/direction, single-phase, or CW/CCW modes — enough for a single-axis encoder feedback loop without an add-on module. On-board Ethernet Modbus TCP/IP at 10/100 Mbit/s handles the control-network link, while a second serial port (RS232 or RS485, 1.2–115.2 kbit/s) supports a local HMI or drive daisy-chain.

I/O timing and PID loop count

Fast inputs I0, I1, I6, I7 switch at 5 µs on/off — these are the ones to use for high-speed capture or interrupt-driven events. Regular inputs I8–I13 respond at 35 µs on and 100 µs off, adequate for pushbuttons and limit switches. Transistor outputs Q0–Q9 turn on in 1 ms and off in 1 ms; outputs Q0 and Q1 can also run PWM or PLS at up to 100 kHz for simple motion or lamp-dimming profiles. The controller supports up to 14 simultaneous PID loops — useful when a single machine station needs closed-loop control on temperature, pressure, and flow without a separate process controller.

Compliance and documentation

CE marked and designed to IEC 61131-2 (PLC hardware) and IEC 61010-2-201 (safety requirements for programmable controllers). Pollution degree 2, suitable for clean industrial environments. Insulation between input groups and between output groups is rated at 500 VAC — channel-to-channel isolation is non-insulated within the same group, so field wiring should separate high-voltage and low-voltage signals by group. Backup time for the real-time clock and program retention is 3 years at 25 °C via a BR2032 lithium battery (5-year battery life). The clock drift is ≤90 seconds per month at 25 °C.
