GV4P50N6
Schneider Electric
Gray RAL 7016)IP40Motor protection
Ref. price$1,031.03
Lead time on requestGet quote

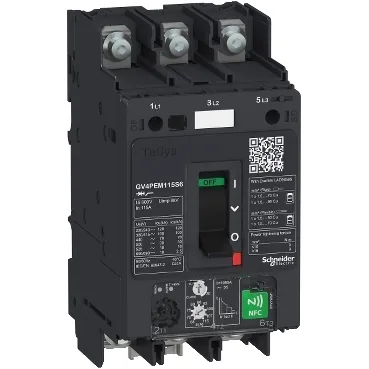

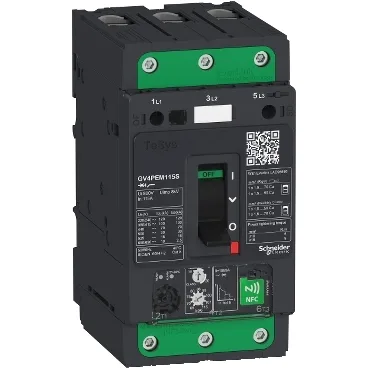

Schneider Electric GV4P Motor Protection Circuit Breakers Series
18 variants · Schneider Electric
About the Schneider Electric GV4P Motor Protection Circuit Breakers Series
The Schneider Electric GV4P Motor Protection Circuit Breakers Series series groups 18 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common application of Motor protection, color of Gray RAL 7016) and height of 6.1 in (155 mm). Variants differ by control type, depth and electrical life cycles, so you can match the exact control type your application requires using the selection guide below.
Select a variant by
- Control type
- Rotary handle · Toggle
- Depth
- 4.6 in (116 mm) · 6.5 in (165 mm)
- Electrical life cycles
- 10000 cycles AC-3 440 V In/2 5000 cycles AC-3 440 V In · 14000 cycles AC-3 440 V In/2 7000 cycles AC-3 440 V In · 20000 cycles AC-3 440 V In/2 10000 cycles AC-3 440 V In
- Trip unit type
- Electronic Thermal-magnetic · Thermal-magnetic Electronic
Shared specifications
- Application
- Motor protection
- Color
- Gray RAL 7016)
- Height
- 6.1 in (155 mm)
- IP rating
- IP40
- Main product or component type
- Motor circuit breaker
- Mechanical life cycles
- 40000 cycles
- Operating position
- Any position
- Operating temperature
- -13...158 °F (-25...70 °C)
- Pollution degree
- 3
- Storage temperature
- -58...185 °F (-50...85 °C)
- Temp operating max
- 70 °C
- Temp operating min
- -25 °C
Variant comparison
| Parameter | GV4P50B6 | GV4P50N6 | GV4PEM115S6 | GV4PEM50B6 | GV4PEM80S6 | GV4PE50N6 |
|---|---|---|---|---|---|---|
| Control type | Rotary handle | Rotary handle | Toggle | Toggle | Toggle | Toggle |
| Depth | 6.5 in (165 mm) | 6.5 in (165 mm) | 4.6 in (116 mm) | 4.6 in (116 mm) | 4.6 in (116 mm) | 4.6 in (116 mm) |
| Electrical life cycles | 20000 cycles AC-3 440 V In/2 10000 cycles AC-3 440 V In | 20000 cycles AC-3 440 V In/2 10000 cycles AC-3 440 V In | 10000 cycles AC-3 440 V In/2 5000 cycles AC-3 440 V In | 20000 cycles AC-3 440 V In/2 10000 cycles AC-3 440 V In | 14000 cycles AC-3 440 V In/2 7000 cycles AC-3 440 V In | 20000 cycles AC-3 440 V In/2 10000 cycles AC-3 440 V In |
| Trip unit type | Thermal-magnetic Electronic | Electronic Thermal-magnetic | Thermal-magnetic Electronic | Thermal-magnetic Electronic | Electronic Thermal-magnetic | Thermal-magnetic Electronic |
Request a quote on any Schneider Electric GV4P Motor Protection Circuit Breakers Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
