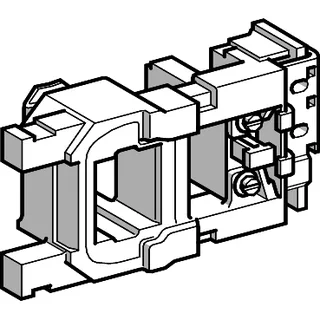

LX4FH100
Schneider Electric
-67...158 °F (-55...70 °C)70 °C-55 °C
Ref. price$124.46
Lead time on requestGet quote
Schneider Electric LX4F Coils Series
113 variants · Schneider Electric
About the Schneider Electric LX4F Coils Series
The Schneider Electric LX4F Coils Series series groups 113 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common main product or component type of Contactor coil and operating time of 30...40 ms closing 30...50 ms opening. Variants differ by control circuit type, operating temperature and temp operating max, so you can match the exact control circuit type your application requires using the selection guide below.
Select a variant by
- Control circuit type
- DC low consumption · DC wide range
- Operating temperature
- -67...158 °F (-55...70 °C) · 23...131 °F (-5...55 °C)
- Temp operating max
- 55 °C · 70 °C
- Temp operating min
- -55 °C · -5 °C
- Mechanical life cycles
- 1 Mcycles · 10 Mcycles
Shared specifications
- Main product or component type
- Contactor coil
- Operating time
- 30...40 ms closing 30...50 ms opening
Variant comparison
| Parameter | LX4FF030 | LX4FF045 | LX4FF055 | LX4FF080 | LX4FF140 | LX4FF170 |
|---|---|---|---|---|---|---|
| Control circuit type | DC low consumption | DC low consumption | DC low consumption | DC low consumption | DC low consumption | DC low consumption |
| Operating temperature | 23...131 °F (-5...55 °C) | 23...131 °F (-5...55 °C) | 23...131 °F (-5...55 °C) | 23...131 °F (-5...55 °C) | 23...131 °F (-5...55 °C) | 23...131 °F (-5...55 °C) |
| Temp operating max | 55 °C | 55 °C | 55 °C | 55 °C | 55 °C | 55 °C |
| Temp operating min | -5 °C | -5 °C | -5 °C | -5 °C | -5 °C | -5 °C |
| Mechanical life cycles | — | — | — | — | — | 10 Mcycles |
Request a quote on any Schneider Electric LX4F Coils Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
